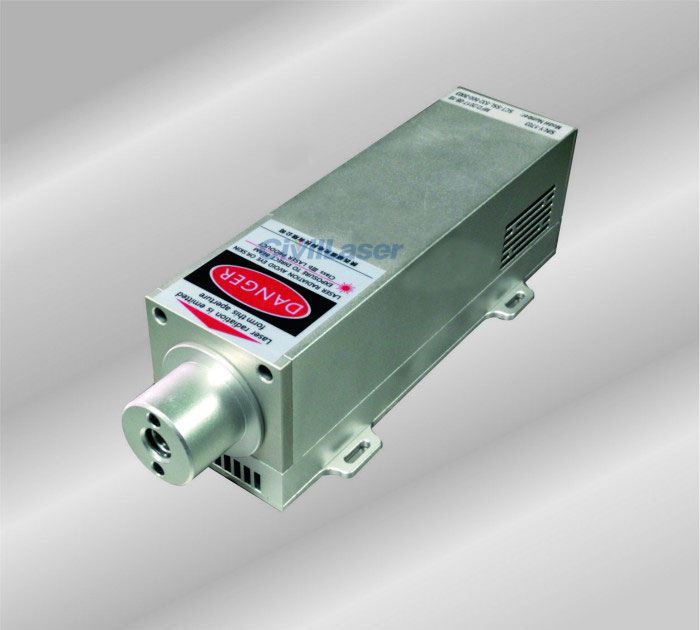

نظام الليزر الخطي 532nm 635nm 650nm 793nm 808nm 915nm 1W Line Laser
Note: The $110 is the deposit, not the final price.
[Feature]
1. Two-way temperature control
2. Wavelength and استقرار القوة
3. Small size
4. Applicable temperature is wide
5. Energy uniformity
[Application]
1. 3D scanning
2. Machine vision
3. Slit detection
4. Trajectory monitoring

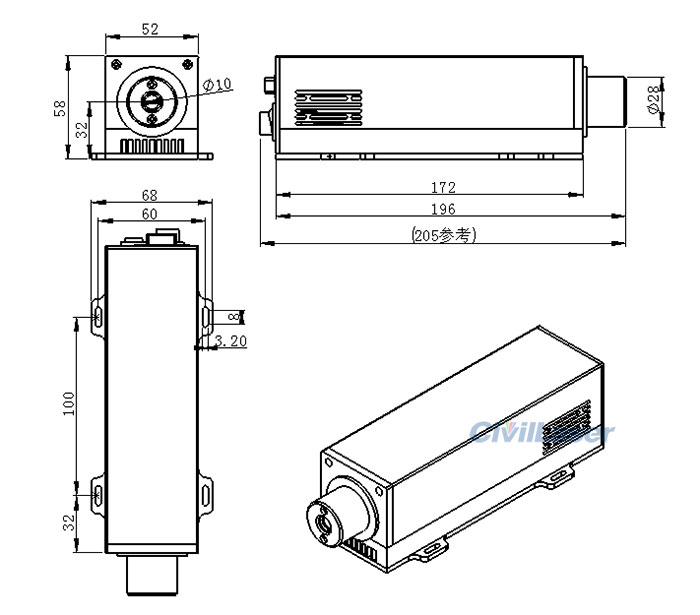

[Structural parameters]
Size: 205 (±0.5) × 52 (± 0.5) × 58 (± 0.5) (mm)
Weight: 0.8±0.1kg
Mounting Hole Position: 60-100 (mm)
Installation Suggestion: 4-M3
Transverse Optical Axis: Centered
Light Height: 32mm (distance from the bottom plate)
[تخصيص]
| Parameter |
Unit |
Value |
| Wavelength |
nm |
532、635、650、793、808、915 |
| انتاج الطاقة |
W |
1 |
| Line Width |
△λ(nm) |
≦0.1 |
| Laser Mode |
|
Line |

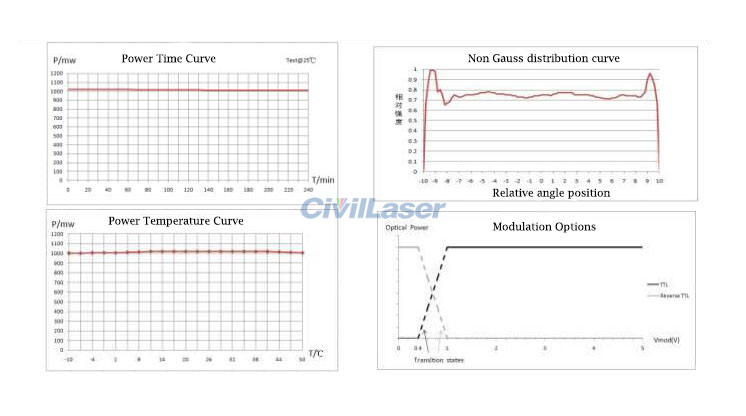

| استقرار الطاقة |
RMS |
≦3% (25°C & 4 hours test data) |
| Spot Stability |
mrad |
≦±0.05(25°C & 4 hours test data) |
| Linear Thickness |
mm |
1～15mm（Optional） |
| Horizontal Deviation |
mm |
≦1mm (left and right ends off center) |
| Fan-shaped Opening Angle |
° |
10~90° (conventional: 10°, 30°, 45°, 50°, 60°, 75°, 85°) |
| Power Density Error |
X% |
≦±30% (Luminance uniformity) |
| Vertical Deviation |
mm |
≦5mm (@2.5M) vertical deviation from the center value |
| Linear Curvature |
|
Dx<1.5mm (no fork) |
| Light Homogenization Mothed |
|
Built-in fiber coupling system |
| Adapter مزود الطاقة |
|
Built-in SP-DC12V03A |
| Average Power Consumption |
W |
≦40.0 |
| تعديل TTL |
Hz |
≦1kHz (0/5VDC level signal input) |
| Temperature Control Accuracy |
℃ |
0.1°C (built-in TEC cooling/heating bidirectional thermostat) |
| Safety Protection |
|
Short circuit protection / over temperature protection / over voltage protection |
| Control Method |
|
Computer software or host computer instruction |
| Data Feedback |
|
R232 interface controls and feeds back temperature, current, over temperature or other abnormal parameter information |
| Ambient Temperature |
℃ |
-10°C~+50°C |
| Environment Humidity |
X% |
20-85% RH-non-condensing |
| درجة حرارة التخزين |
°C |
-20℃~+60℃ |
| Storage Humidity |
X% |
10～95%RH |
| Vibration Test |
|
GBT 2423.43-2008/-15m/s2 5-200Hz |
| Impact Resistance |
|
IEC 60068-2-47:2005/-150 m/s2 11ms |
| Amplitude Noise |
rms |
≦1% （1～20MHz） |
| Service Life |
hrs |
≧10000 |
| ضمان Period |
year |
1 |
Note:
All linear lasers are customized products.
The laser wavelength/output power/divergence angle/line thickness/size/power supply... and other parameters need to be confirmed first.
