635nm 100mW Single Modeالليزر المقترن بالألياف TEM00 Mode Laser
This product is for single mode fiber coupling of semiconductor laser,the stability of the output power of the fiber is good and the spot mode is TEM00 mode.The beam quality is very good, which can meet the requirement of high beam quality.
Our company produces single wavelength, polarization maintaining and multimode fiber coupled lasers at various wavelengths, as well as fiber optic coupled lasers with fiber coupled lasers.Please contact us.
Notes:
This is a custom product.If you need other output powe or have special requirements, please contact us.
مهلة: 2~4 weeks! Custom product available!
[سمات]
1.قوة عالية stability(<3%)
2.Singal mode fiber coupled,fiber output.
[تحديد]
Wavelength: 635nm±5nm
انتاج الطاقة: 1~100mW
عرض خطي طيفي: <2nm
Fiber Type: SM/PM (choose)
Fiber Interface: FC/PC, FC/APC, SMA905 (choose)
Fiber Length: 1m (If you need other length, please contact us.)
Polarization Ratio: >70:1 (Only for PM fiber)
رأس الليزر size: 35mm*35mm*102mm
درجة حرارة التشغيل: 0°C-40°C
درجة حرارة التخزين: -40°C-85°C
Modulation: 0~10KHz TTL
| Parameter |
Work condition |
Symbol |
Min. |
Typical Value |
Max. |
Unit |
| انتاج الطاقة |
@PO |
PO |
|
|
100 |
mW |
| استقرار الطاقة |
2hrs |
Ps |
|
|
3 |
% |
| Central Wavelength |
@PO |
λc |
|
635 |
|
nm |
| Spectral linewidth |
@PO |
FWHM |
|
2 |
|
nm |
| Fiber Type |
SM Fiber |
| Fiber Length |
|
|
|
100 |
|
cm |
| واجهة الألياف |
|
|
FC/SMA905 |
|
| Warming Time |
@PO |
Tw |
|
|
5 |
min |
| Noise |
RMS(10Hz-100MHz) |
N |
|
1 |
|
% |
| Service Life |
@PO |
MTBF |
5000 |
|
|
Hrs |
.jpg)

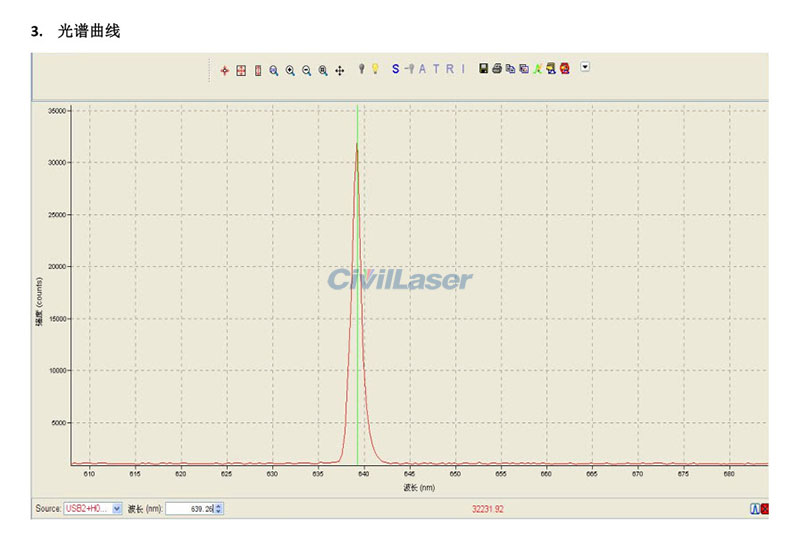

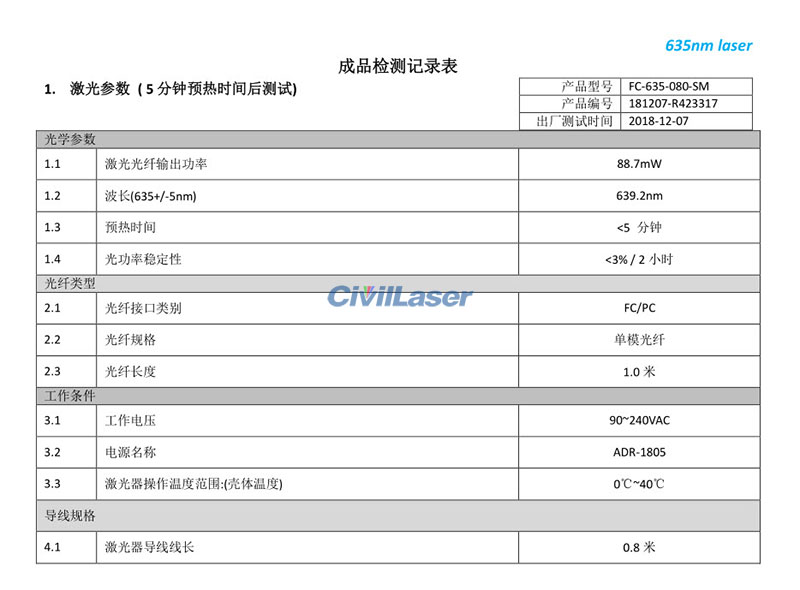

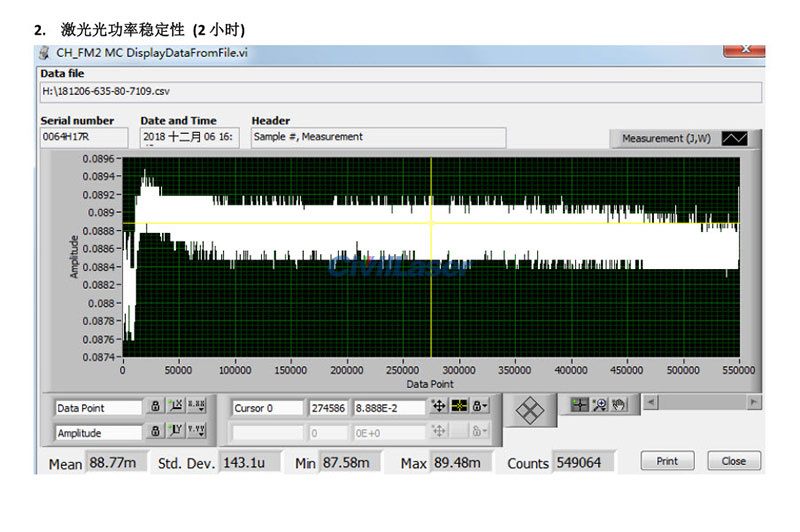

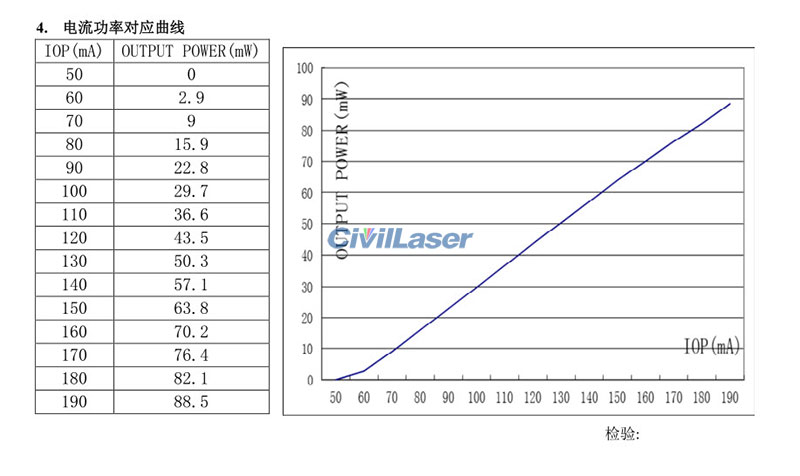

Test report reference:
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
