785nm 350mWالليزر المقترن بالألياف 0.2nm Narrow Linewidth رامان ليزر مصدر ليزر الأشعة تحت الحمراء

785nm 350mWالليزر المقترن بالألياف 0.2nm Narrow Linewidth رامان ليزر مصدر ليزر الأشعة تحت الحمراء

The 785nm narrow-linewidth Raman laser produced by our company has narrow spectral line width and good spectral stability, and it has a wide range of applications in Raman analysis. Provides free optical path and fiber-coupled two kinds of production solutions, which can be matched with Raman probes and corresponding accessories, to fully solve the customer's need to build a hardware part of the Raman spectrometer.

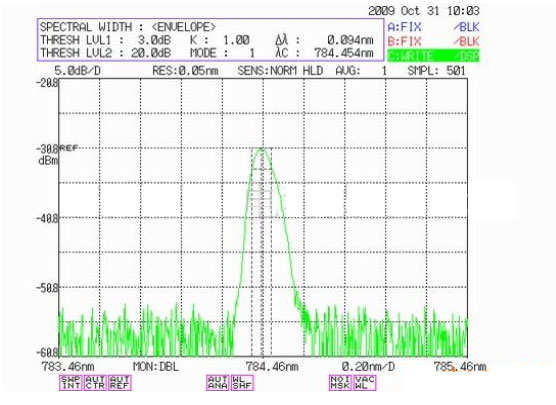

The Raman laser has good spectral stability, and the center wavelength remains basically constant under long-term working conditions; the spectral line width is narrow, and it has a very good Raman effect when used as a Raman light source, and is very suitable for pulling. Mann Spectral and Sensing applications.

Notes:
This is a custom product,  if you need other output power, or have special requirements, please contact us.

[مهلة]
785nm 350mW رامان ليزر: 3~4 weeks

[تحديد]
Wavelength: 785nm±5nm
انتاج الطاقة: 350mW (@ Fiber output side, and 0~max power adjustable)
واجهة الألياف: FC/PC or SMA-905(choose)
Fiber diameter:100um
نوع الألياف: Multi-mode Fiber
Output stability (rms): <3% over 2 hours
Modulation: 0~10KHz TTL
درجة حرارة التشغيل: 10℃-35℃
درجة حرارة التخزين:  -40°C-85°C
Warm-up Time (minutes): <5
Expected Lifetime (hours): >5000
ضمان Time: 1 Year
