685nm 60mw وحدة الليزر الأحمر focus adjustable نقطة / خط / تقاطع

685nm 60mw وحدة الليزر الأحمر focus adjustable نقطة / خط / تقاطع

[Feature]
1. 685nm is pure red light, laser light is bright and soft and not dazzling.;
2. Spot size/Line width adjustable from 0.4mm to several centimeters;

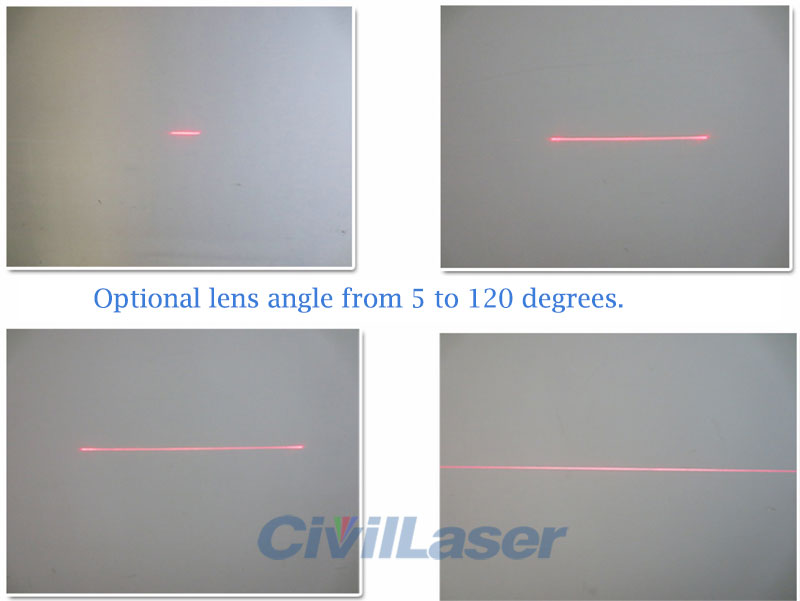

3. Line / cross lens angle from 5° to 120° optional;
4. Good heat dissipation, shockproof, anti falling and antistatic;
5. Diode Direct Light Emission, it's very stable and can be turned on 24 hours;
6. Intelligent Drive Board with Import IC;
7. High temperature and corrosion resistant DC plug line is suitable for all-weather and all-environment use.

[تخصيص]
اسم المنتج: 685nm وحدة الليزر
Wavelength: 685nm
انتاج الطاقة: 60mW
شكل الليزر: Dot / line / crosshair (choose)
جهد التشغيل: DC 2.8-5.2（V）
Operating Current: <180mA

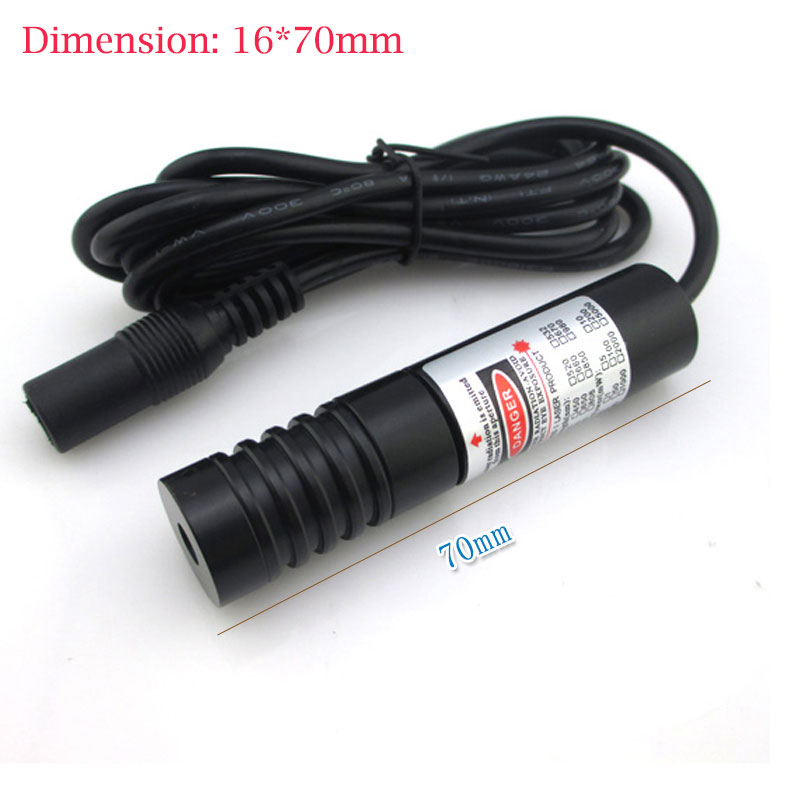

Size: 16*70 mm(Can be customized)
Include: Laser module + adjustable power supply + laser holder

Dot laser:
In the daytime indoors, laser range 0~900 meters ;
In the daytime and half outdoors, laser range 0~400 meters;
In dark environment, the laser range 0~2500 meters.

Line Shape:
The indoor use, the line length can reach 11 meters.

Cross Shape:
The indoor environment can reach 9 meters (the horizontal and vertical lines of the cross are 9 meters long, respectively).
