520nm 5mw~30mw Green Line laser module high Stable

520nm 5mw~30mw Green Line laser module high Stable

تحديد:
Model#: LM52053L10

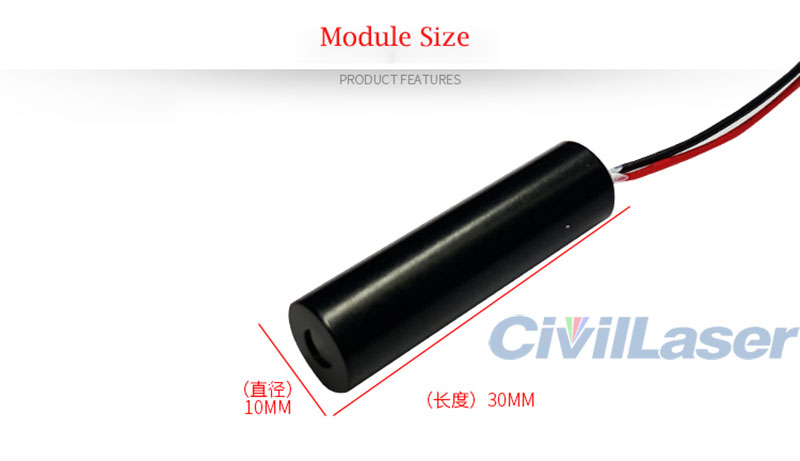

Size: 12*42mm (Can customize 10x30mm , 20*60mm)
Material: Aluminum
Service life: >10000hours
Wavelength: 520nm±10nm
انتاج الطاقة: <5mw, <10mw, <30mw
Laser Range(Indoor): >10m, >15m, >30m
Linewidth at 1 metre: <3mm
Focus: Fixed
Fan angle: 5~120 degree(Default fan angle is 88 degree, leave a comment if you need other fan angle)
Lens material: Acrylic Optical Mirror(Can customize Glass Aspheric Coating)
Circuit control: ACC Constant Current Control Board
Fan angle: 88 degree, line length is about 2m at 1m distance
Working Voltage: DC 3V(can customized 5~24V)
Working Current: <80mA
Working mode: CW (تعديل TTL يمكن تخصيص)
Working temperature: -20°C~+60°C
درجة حرارة التخزين: -40°C~+85°C
