1000mW~5000mW قوة عالية C-Band مصدر ضوء النطاق العريض ASE module type
The fiber مصدر ضوء النطاق العريض ASE is based on the erbium doped fiber and high performance pumped laser, which produces the amplified spontaneous emission light in the 1550nm band. Precision constant current drive and temperature control circuit to control the pump laser, to ensure the stability of the laser output power, and the use of a unique light path structure design and gain flat filter structure. The output power is high and the spectrum is flat, which is suitable for the application of fiber grating sensing and scientific research.
Application:
optical fiber laser
optical fiber communication
DWDM system
optical fiber sensor
[تحديد]
|
Parameter index
|
Unit
|
Minimum value
|
Typical value
|
Maximum value
|
Remarks
|
|
Wavelength range
|
nm
|
1528
|
1550
|
1563
|
Covering C-band
|
|
Spectral width
|
nm
|
|
> 35
|
|
|
|
Flatness
|
dB
|
|
3
|
|
|
|
انتاج الطاقة
|
mW
|
|
|
1000~5000
|
choose
(انتاج الطاقة is fixed.)
|
|
dBm
|
|
|
30~36
|
choose
|
|
Output isolation
|
dB
|
|
45
|
|
|
|
Operating temperature range
|
℃
|
-20
|
|
+45
|
|
|
Working humidity range
|
%
|
|
|
75
|
|
|
درجة حرارة التخزين range
|
℃
|
-40
|
|
+85
|
|
|
Power supply type
|
-
|
12V DC , <15W
|
|
|
Pigtail connector type
|
-
|
FC/APC
|
|
|
Output pigtail type
|
-
|
Single Mode Fiber, SMF-28e
|
|
|
Size
|
mm
|
Module A: 90x70x15
Module B: 150x125x20(Default)
Module C: 120x160x55

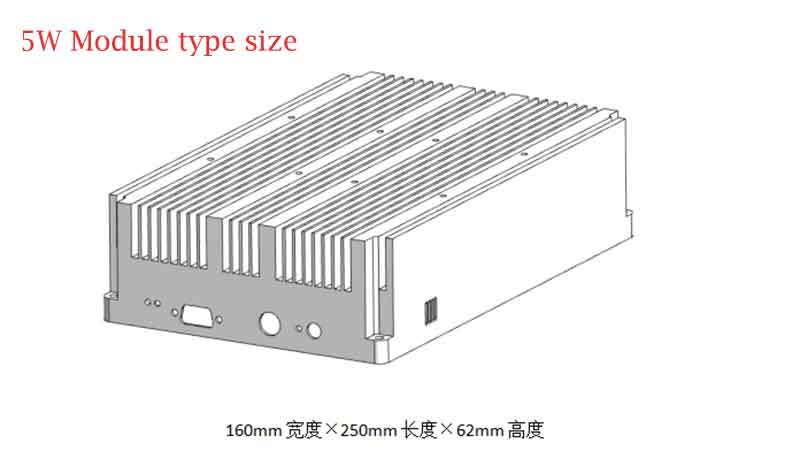

Module D: 160x250x62mm(5W)
|
Usually the higher the power, the larger the size.
Please contact us if you have size requirements.
|
|
Control method
|
|
RS232,DB9 Female |
Default not include, Only for انتاج الطاقة قابل للتعديل model.
Add software control functions, please contact us. |
