515nm/520nm 50mW~150mW ضبط التركيز البؤري Grass وحدة الليزر الخضراء

515nm/520nm 50mW~150mW ضبط التركيز البؤري Grass وحدة الليزر الخضراء 12V





1. Without Warm-up Time,very low power, low heat,so it can coninue work long hours in the temperature range of 0-60 degrees, but the traditional  532nm green laser module is only guaranteed to work at room temperature 20 degrees, zero temperature can not be normal startup, for example, most of such a small size can not work long hours;

2. Shape design improvements,Taking into account the square products more suitable for precise fix on any plane, so designed as a rectangular cross-section, of course, but also retains the characteristics of concentric circles, so let alone modules and other equipment or assembly to become simple and precise.

3.  OSRAM imported semiconductor laser diode light in the form of point-like, with a range as far as three kilometers or more.

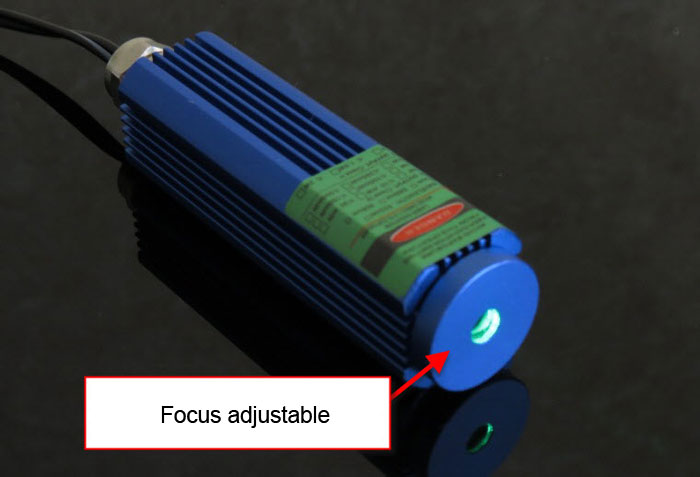

4. Using focusable design structure, you can freely adjust according to need spot size.





الطول الموجي الناتج: 515 nm±10nm

انتاج الطاقة: 50mW /100mW /150mW ((يختار)

شكل الليزر: Dot

شعاع الاختلاف: <1.5mard

اللون الخارجي: Blue

Material: Aluminum Alloy

Electric-control: ACC line rod

Anti Access Protection: Yes

جهد التشغيل: DC 5V/12V
Operating Current: <250mA

Warm-up Time: Nought

درجة حرارة التشغيل: 0℃~60℃

درجة حرارة التخزين: -40℃~85℃

Structural features: laser tube + lens + cooling housing

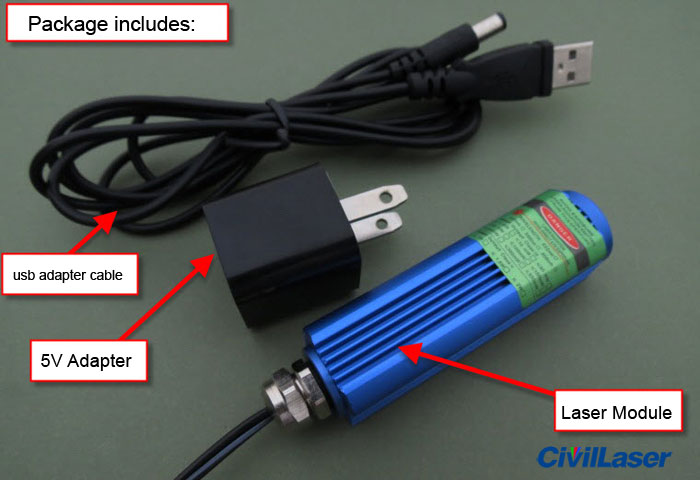

1 x وحدة الليزر الخضراء

1 x Power supply
