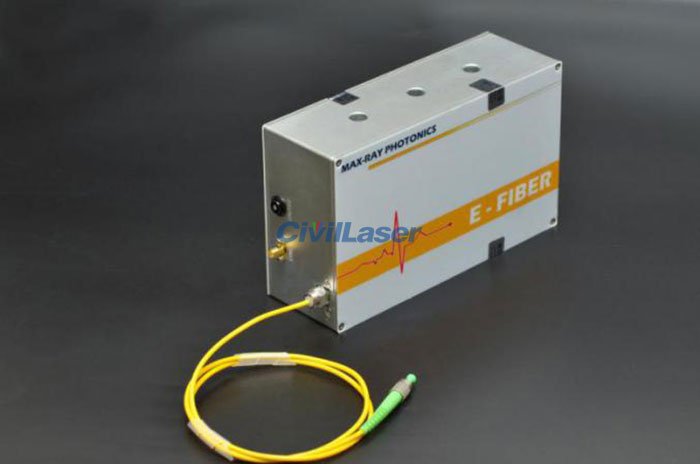

Ultra-Fast Laser 1560nm 1.5μm ليزر الألياف النبضي فيمتو ثانية PM Fiber
The ultra-fast laser integrates the latest femtosecond laser technology, using high-performance rare earth fiber as the working medium, combined with high-precision dispersion compensation technology and active servo control system to achieve stable output of 1.5um band femtosecond pulse laser. It has a wide range of applications, such as optical frequency comb, super continuum spectrum, terahertz THz, etc., with its self-starting and long-term stable operation. It has the characteristics of extremely narrow laser pulse and high pulse peak optical power.
Parameters such as pulse width, power, and repetition rate يمكن تخصيص.
[سمات]
Pulse width minimum 50 fs
Wavelength 1560 nm
Full polarization structure
High stability
[Application]
Optical frequency comb
Supercontinuum generation
Seed laser
Ultrafast laser phenomenon
[تحديد]
| Parameter |
Unit |
Value |
Remarks |
| Wavelength |
nm |
1560±10 |
|
| Spectral Width |
nm |
60nm@3dB |
20~60 |
| Pulse Width |
fs |
50 |
50/100/200 / 500fs customizable |
| Average Power |
mW |
100 |
Customizable |

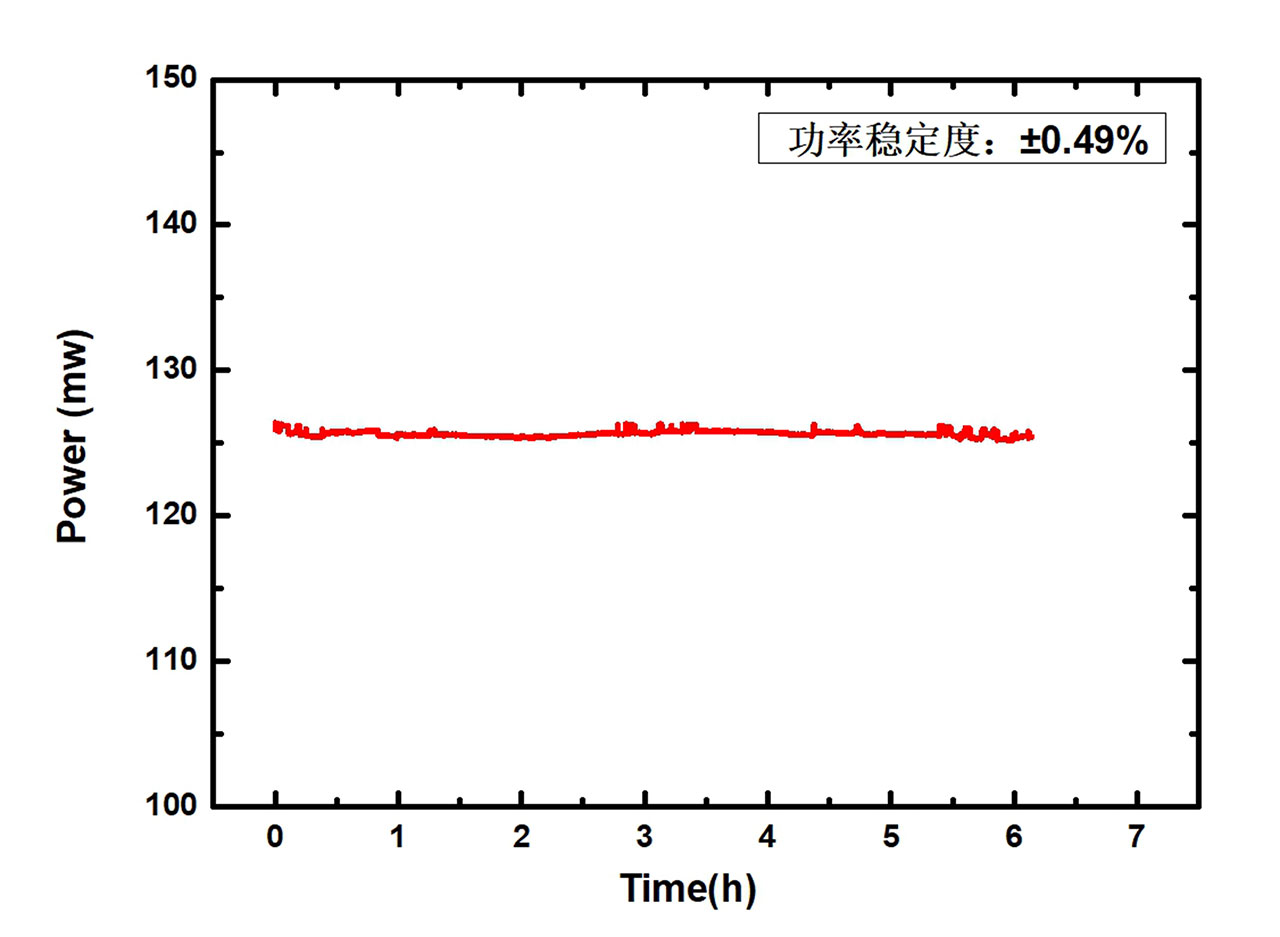

| Power Instability |
|
< 1% |
|
| Repeat Frequency |
MHz |
80 |
Customizable |
| Repetition Frequency Instability |
Hz |
<100 |
|
| Single Pulse Energy |
nJ |
>1 |
|
| Laser polarization state |
|
Linear polarization |
|
| Fiber Type |
|
PM1550 polarization-maintaining fiber output |
|
| Fiber Interface |
|
FC/APC, Slow axis aligns to the slot |
|
| Fiber Length |
m |
1 |
0.5m/1m/2m |
| Preheat Time |
min |
<1 |
|
Electrical and environmental parameters：
| Parameter |
نوع سطح المكتب |
نوع الوحدة
(Current Product) |
| Control Mode |
Button |
Button |
| Synchronous Electrical Signal Interface |
SMA |
SMA |
| مزود الطاقة |
100~240V AC, <30W |
5V DC, <20W |

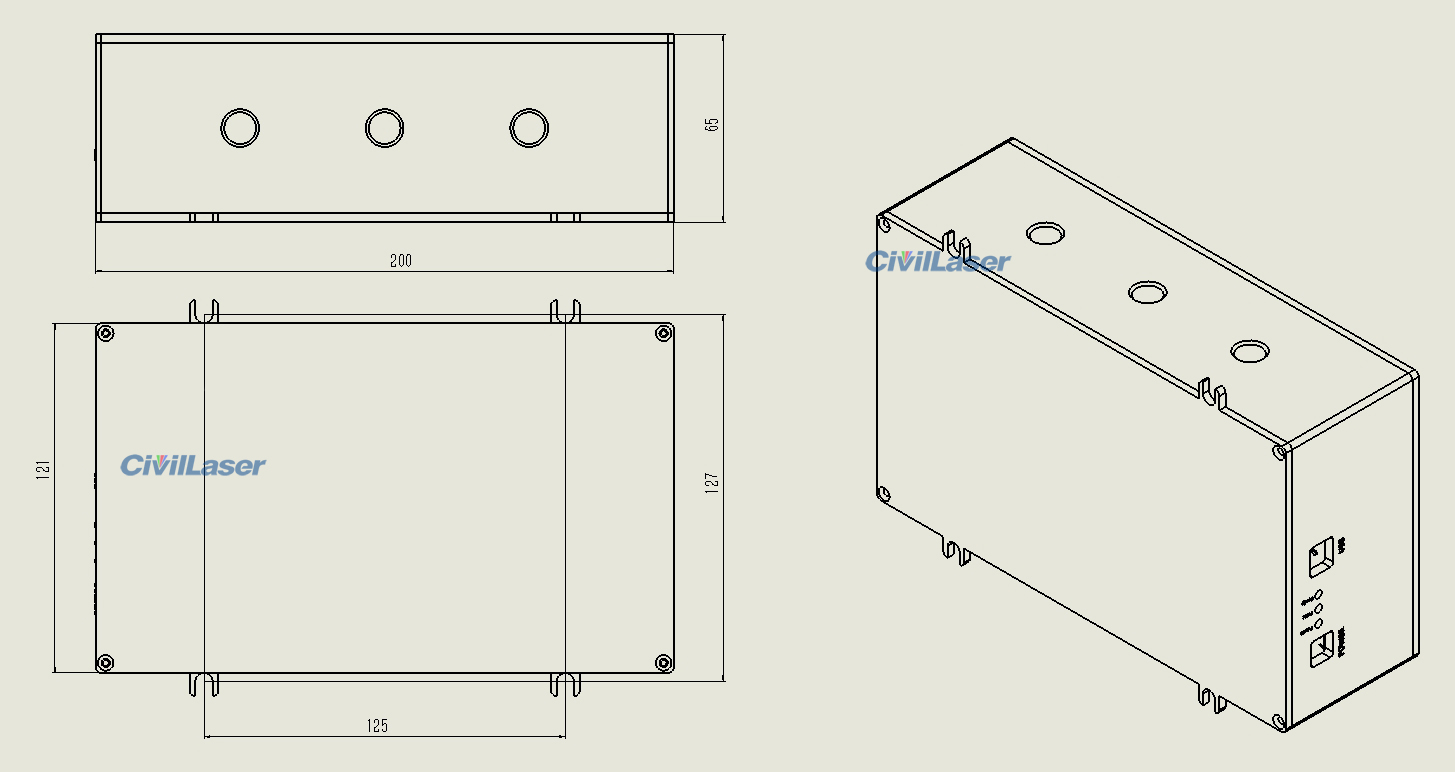

| Size |
330(W)×398(D)×112(H)mm |
200(W)×121(D)×55(H)mm |
| درجة حرارة التشغيل |
5 ~ 45°C |
| Operating Humidity |
0~70% |
