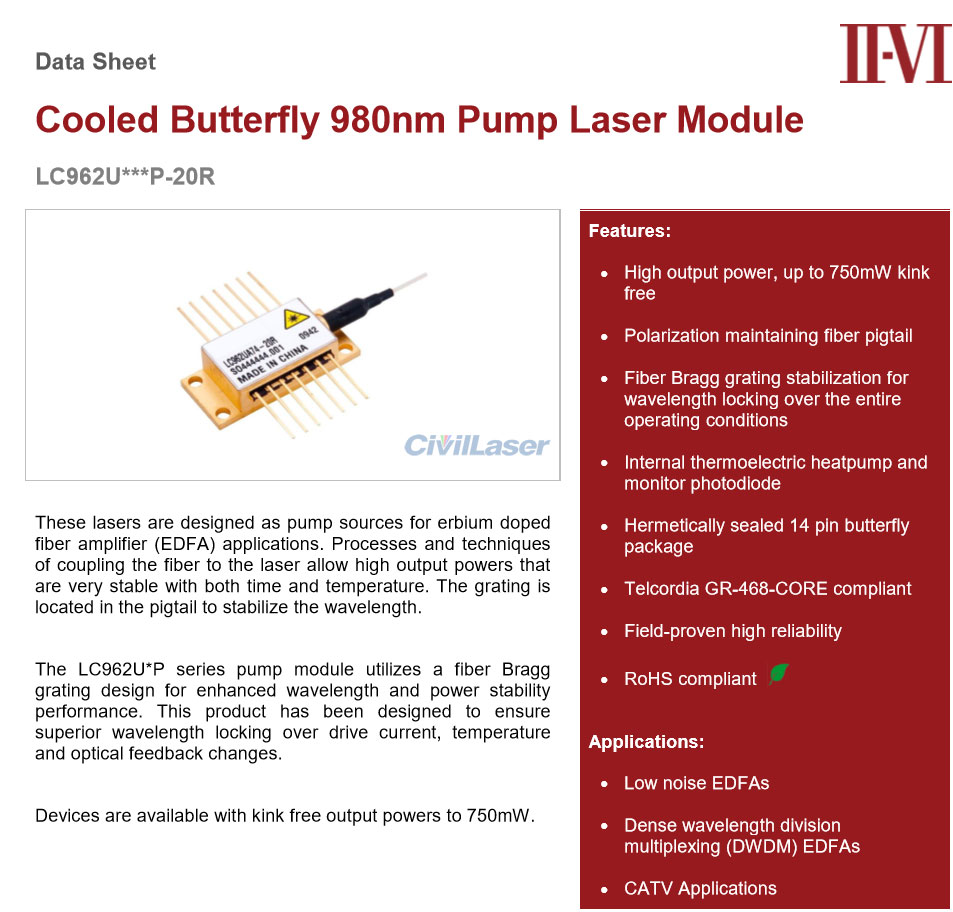

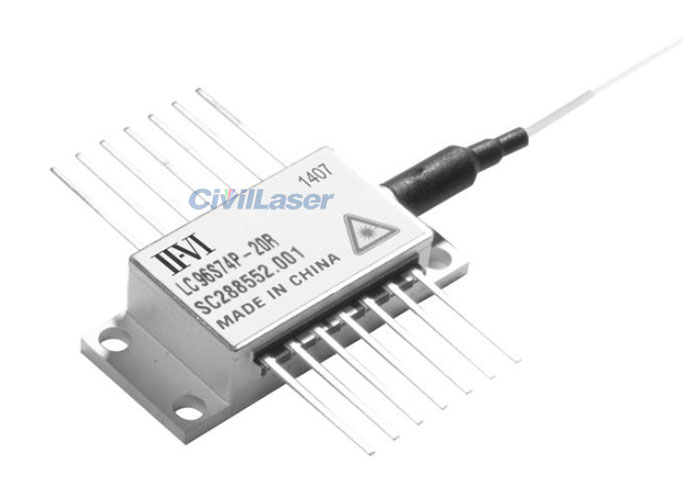

II-VI 976nm KFP 625mW DFB ليزر ديود LC962UA76P-20R 14PIN with PM Fiber

II-VI 976nm KFP 625mW DFB ليزر ديود LC962UA76P-20R 14PIN with PM Fiber

[سمات]
High output power, up to 750mW kink free.

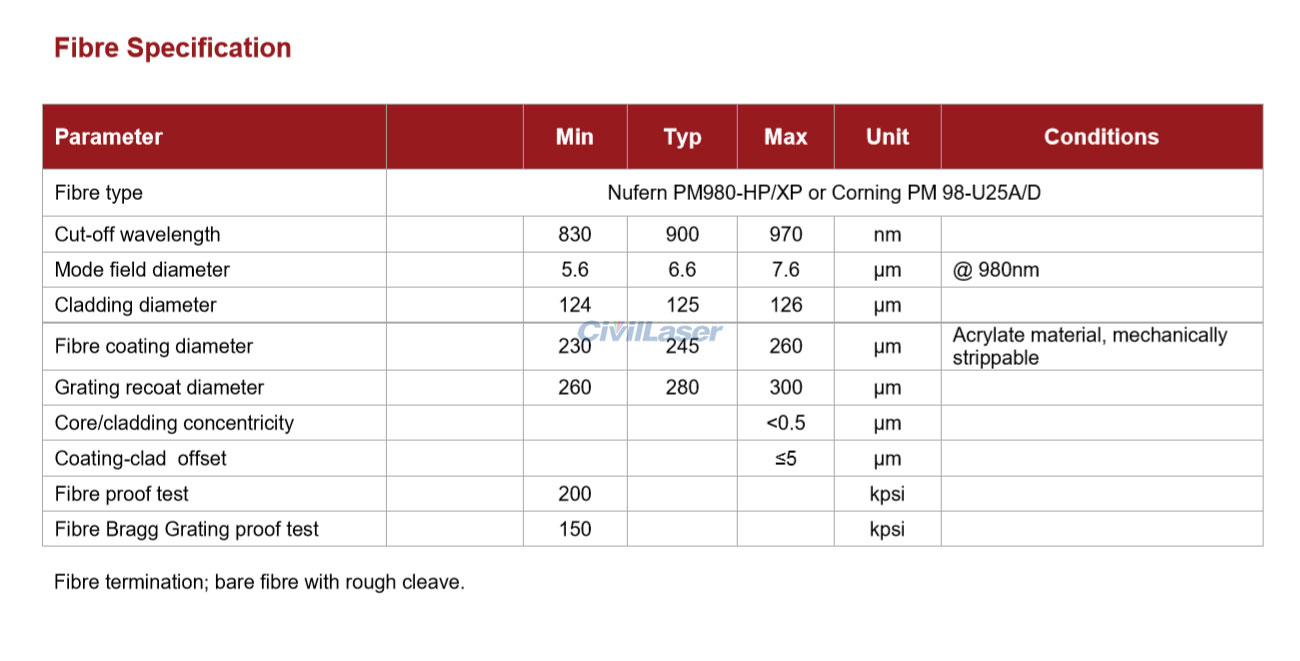

Polarization maintaining fiber pigtailed.
Fiber bragg grating stabilization for wavelength locking over entire operating condition.
Interal thermoelectric heatpump and monitor photodiode.

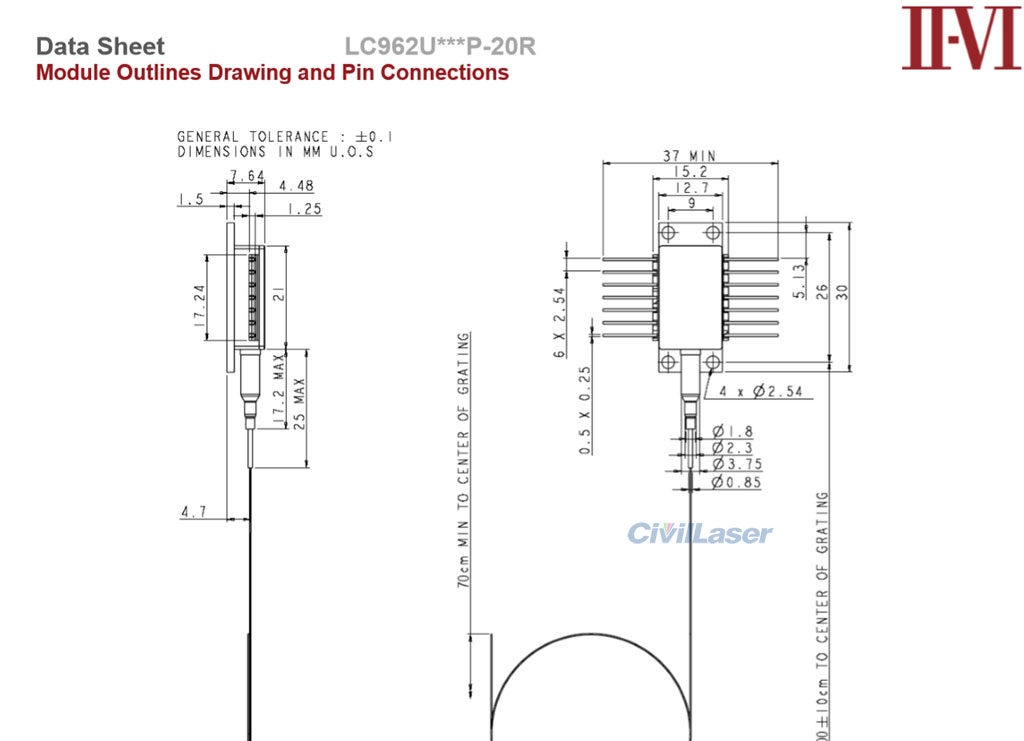

Hermetically sealed 14 pin butterfly package.
Telcordia GR-468-CORE compliant.
Filed-proven high reliablity.
RoHS compliant.

[Applicaitions]
Low noise EDFAs
Dense wavelength division Multiplexing (DWDM) EDFAs
CATV applications

[تخصيص]

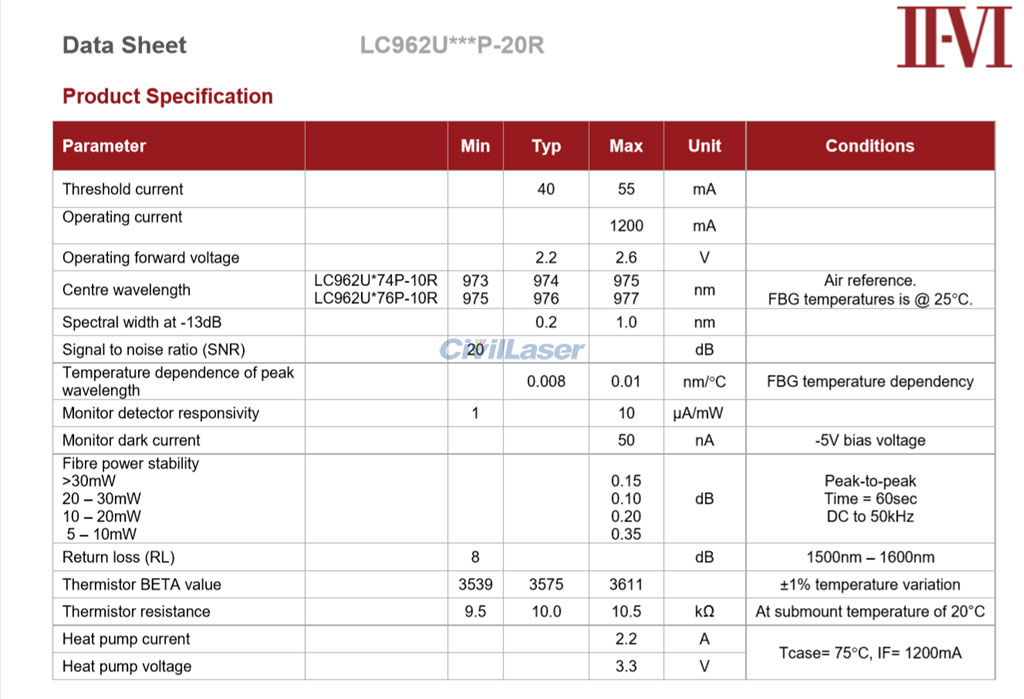

اسم المنتج: II-VI 976nm 625mW DFB ليزر ديود
Centre Wavelength: 976nm
Thresold Current: 40mA
Operating Current: 1200mA
Operating Forward Voltage: 2.2~2.6V
Spectral Width: 0.2@-13dB
Signal to Noise Ratio(SNR): 20dB

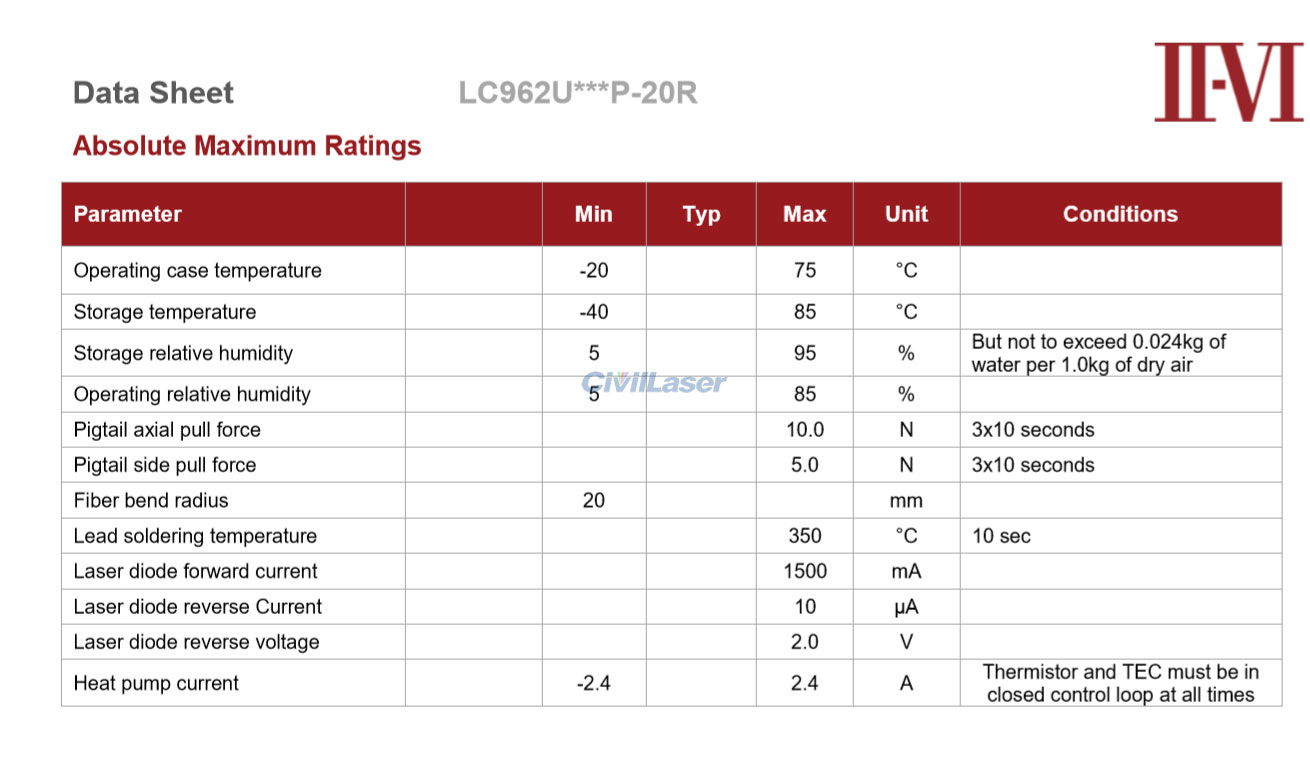

Operating Case Temperature: -20 ~ 75℃
درجة حرارة التخزين: -40 ~ 85℃
Storage Relative Humidity: 5 ~ 95%
Operating Relative Humidity: 5 ~ 85%
