780nm ليزر الألياف النبضي فيمتو ثانية Ultra-Fast وحدة الليزر Type Customizable
The ultrafast laser adopts the latest femtosecond laser technology to achieve stable output of 780nm band femtosecond pulse laser. One-key auto-start and long-term stable operation. It has the characteristics of extremely narrow laser pulse and high pulse peak power. It has important applications in the fields of optical frequency comb, terahertz wave, and multiphoton imaging.
[سمات]
Pulse <100 fs.
Self-starting maintenance free.
Full polarization and high stability.
[التطبيقات]
Multiphoton excitation imaging
Two-photon absorption
Ultrafast laser phenomenon
[تخصيص]
| Parameter |
Unit |
Value |
Remarks |
| Wavelength |
nm |
780±10 |
|

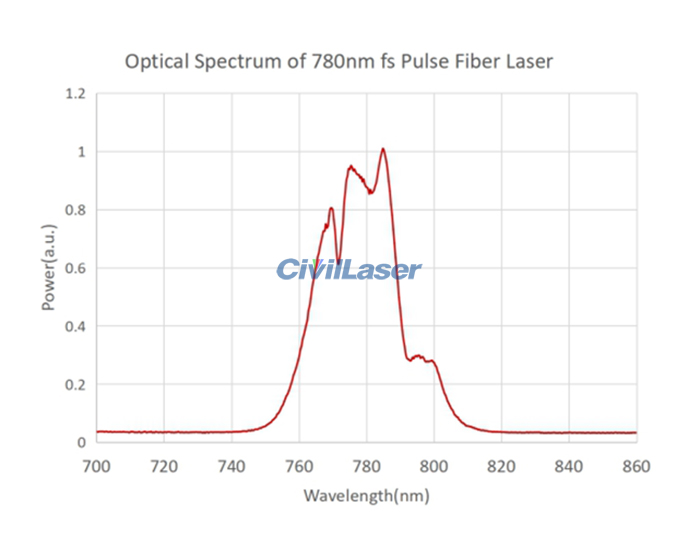

| Bandwidth |
nm |
20nm |
Near 20nm@3dB |
| Pulse Width |
fs |
<100 |
50/100/200/500fs Customizable |
| انتاج الطاقة |
mW |
30 |
Customizable |
| Power Instability |
|
< 1% |
|
| Repeat Frequency |
MHz |
80 |
Customizable |
| Repeat Frequency Instability |
Hz |
<100 |
|
| Single Pulse Energy |
nJ |
>0.4 |
|
| Laser Polarization |
|
Linear polarization |
|
| وضع الإخراج |
|
Spatial Light |
|
| Preheat Time |
min |
<1 |
|
Electrical and environmental parameters：
| Parameter |
نوع سطح المكتب |
نوع الوحدة |
| Control Mode |
Button |
Button |
| Synchronous Electrical Signal Interface |
SMA |
SMA |
| مزود الطاقة |
100~240V AC, <30W |
5V DC, <20W |
| Size |
330(W)×398(D)×112(H)mm |
200(W)×121(D)×55(H)mm |
| درجة حرارة التشغيل |
5 ~ 45°C |
| Operating Humidity |
0~70% |
