Ultra-fast Fiber مصدر الليزر 532nm ليزر الألياف النبضي بيكوسيكوند
CivilLaser's ultrafast lasers use high-performance rare earth fiber as the working medium, combined with high-precision dispersion compensation technology and active servo control system. It can be fully self-starting and stable for a long time. It has the characteristics of extremely narrow laser pulse and high pulse peak optical power. This light source can be used in scientific research in the fields of high power laser, supercontinuum, and nonlinear optics.
Parameters such as pulse width, power, and repetition rate يمكن تخصيص.
[سمات]
Pulse width 10~100 ps
Wavelength 532nm
High stability
[Application]
قوة عالية laser
Supercontinuum generation
Seed laser
[تحديد]
| Parameter |
Unit |
Value |
Remarks |
| Wavelength |
nm |
532 |
532nm/1064nm Customizable |

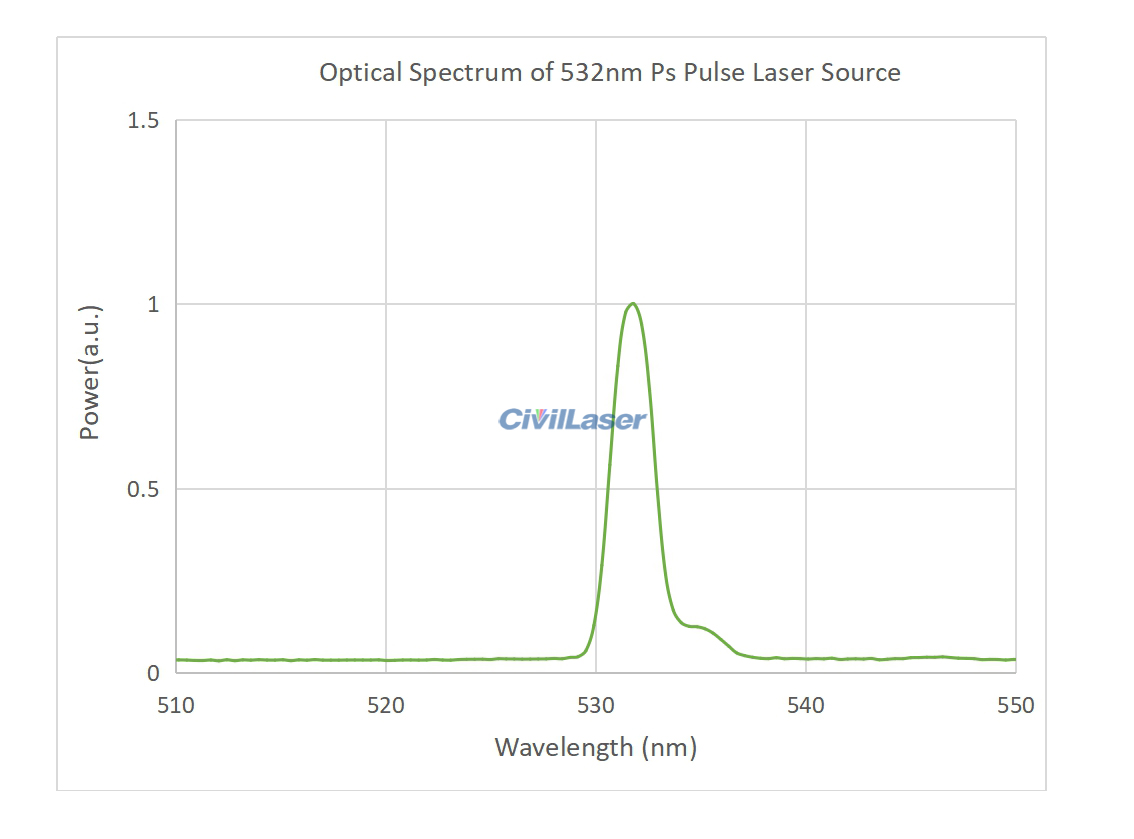

| Spectral Width |
nm |
0.3nm@3dB |
Customizable |

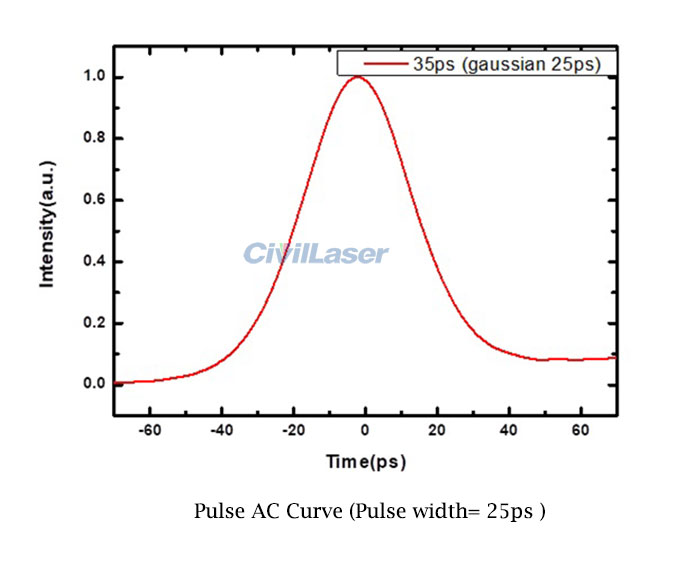

| Pulse Width |
ps |
25 |
10/20/50/100ps Customizable |
| انتاج الطاقة |
mW |
50 |
Customizable |

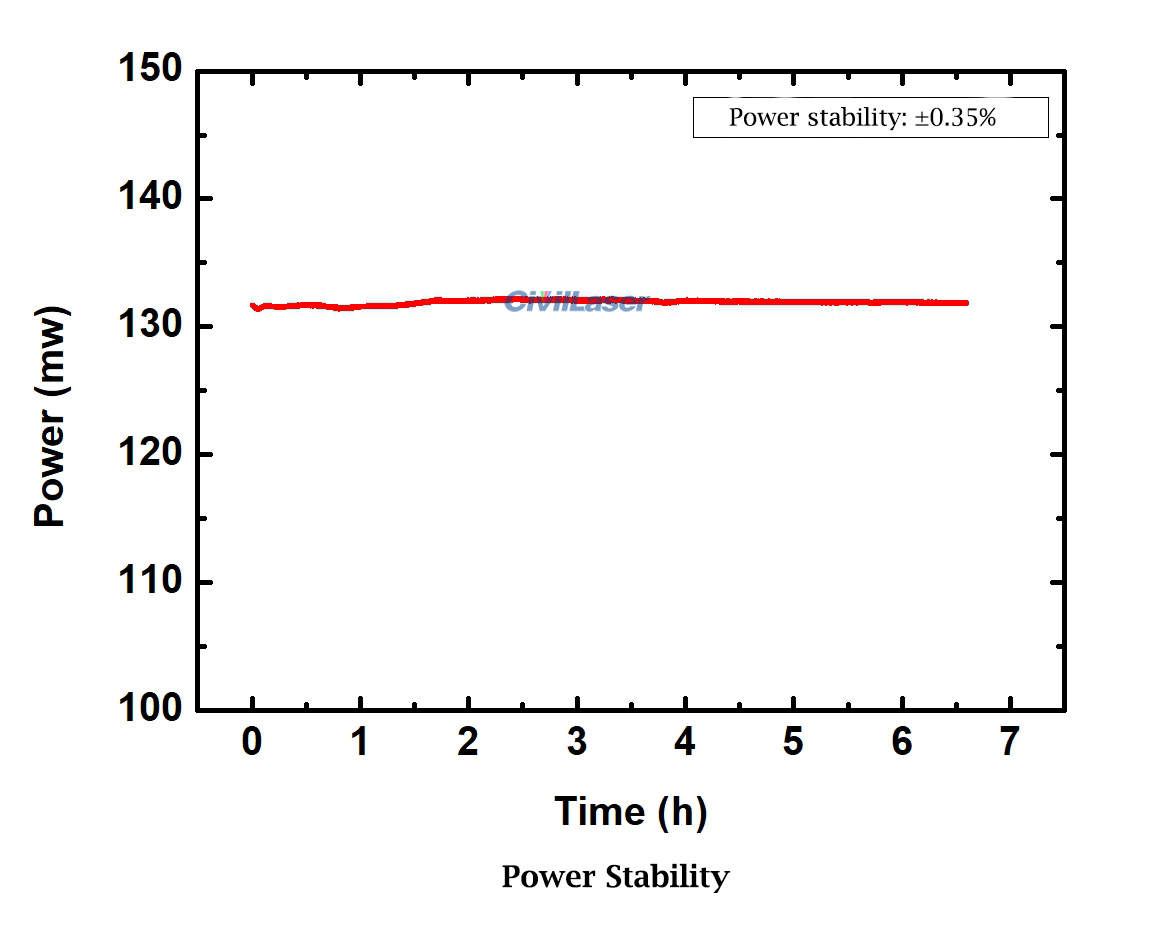

| Power Instability |
|
<± 1% |
25℃, 5 minutes after starting |

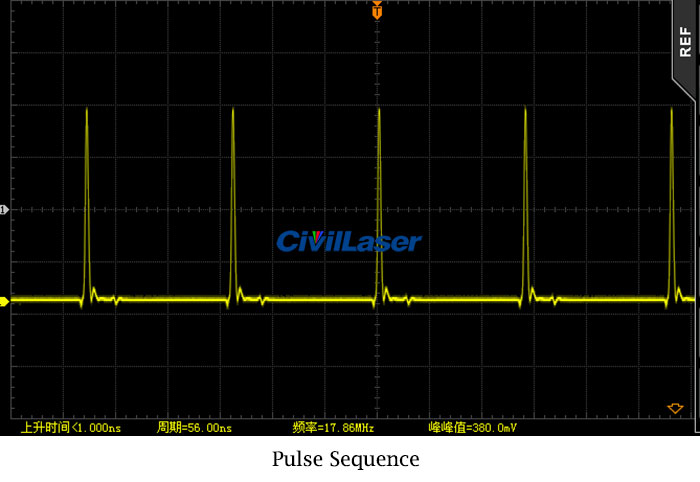

| Repeat Frequency |
MHz |
20 |
15~100MHz Customizable |
| Single Pulse Energy |
nJ |
>0.5 |
|
| Stable Time of Mode Locking After Startup |
s |
<20 |
|
| Laser polarization state |
|
Linear polarization |
|
| Fiber Ouput Type |
|
Spatial output |
|
| Preheat Time |
min |
<1 |
|
Electrical and environmental parameters：
| Parameter |
نوع سطح المكتب |
نوع الوحدة
(Current Product)
|
| Control Mode |
Button |
Button |
| Synchronous Electrical Signal Interface |
SMA |
SMA |
| مزود الطاقة |
100~240V AC, <30W |
5V DC, <20W |
| Size |
330(W)×398(D)×112(H)mm |
200(W)×121(D)×55(H)mm |
| درجة حرارة التشغيل |
5 ~ 45°C |
| Operating Humidity |
0~70% |
