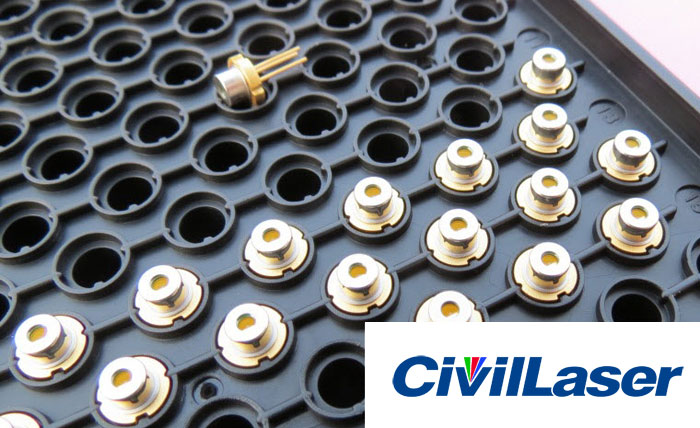

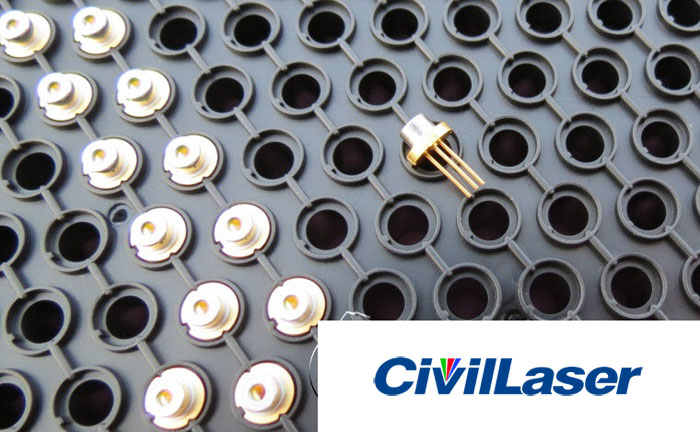

OSRAM PL-520-B1 520nm 120mw grass green laser diode T018

OSRAM PL-520-B1 520nm 120mw grass green laser diode T018







Place of production: Gremany (OSRAM)

الطول الموجي الناتج: 520nm

انتاج الطاقة: CW 120mW

Operating Current: <480mA

جهد التشغيل: DC 6V

نوع الحزمة: TO-18 ( Φ5.6mm)

درجة حرارة التشغيل: 0℃~60℃

درجة حرارة التخزين: -40℃~85℃

Welding time: < 10 seconds

Welding Temperature: < 260℃

الحياة العملية: >10,000 hours





Note:

This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
