120fs Pulse Width 1560nm 1000mW قوة عالية ليزر الألياف النبضي فيمتو ثانية
The ultrafast laser integrates the latest femtosecond laser technology, uses high-performance rare earth fiber as the working medium, and combines high-precision dispersion compensation technology and active servo control system to achieve stable output of 1.5μm-band femtosecond pulse laser with 1 watt average power. One-key auto-start and long-term stable operation. It has the characteristics of extremely narrow laser pulse and high pulse peak optical power. It has a wide range of applications in the fields of optical frequency comb, supercontinuum, and terahertz THz.
[سمات]
Pulse width 120fs.
Average laser power 1W.
Self-starting and maintenance-free.
High stability.
[Application]
Optical frequency comb
Supercontinuum generation
Terahertz wave
Ultrafast laser phenomenon
[تحديد]
| Parameter |
Unit |
Value |
Remarks |

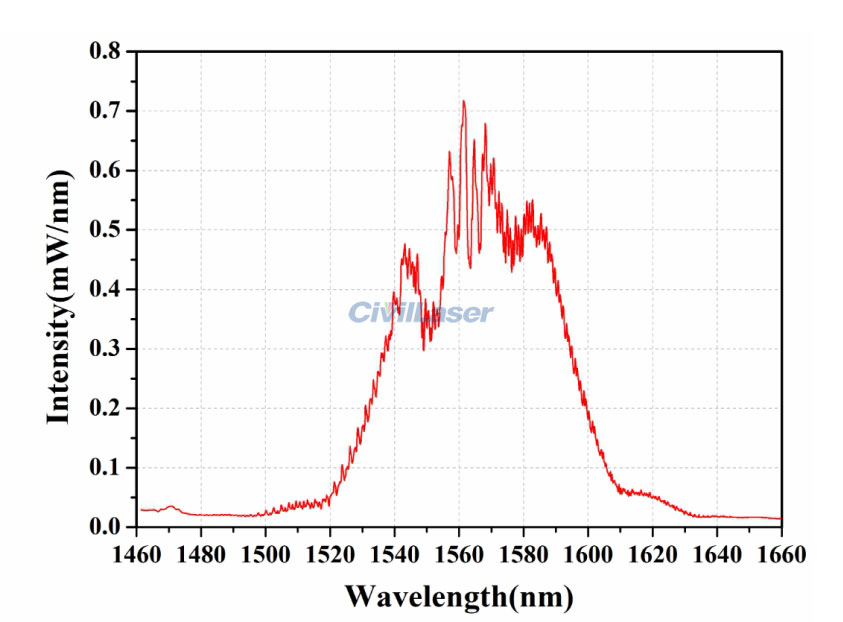

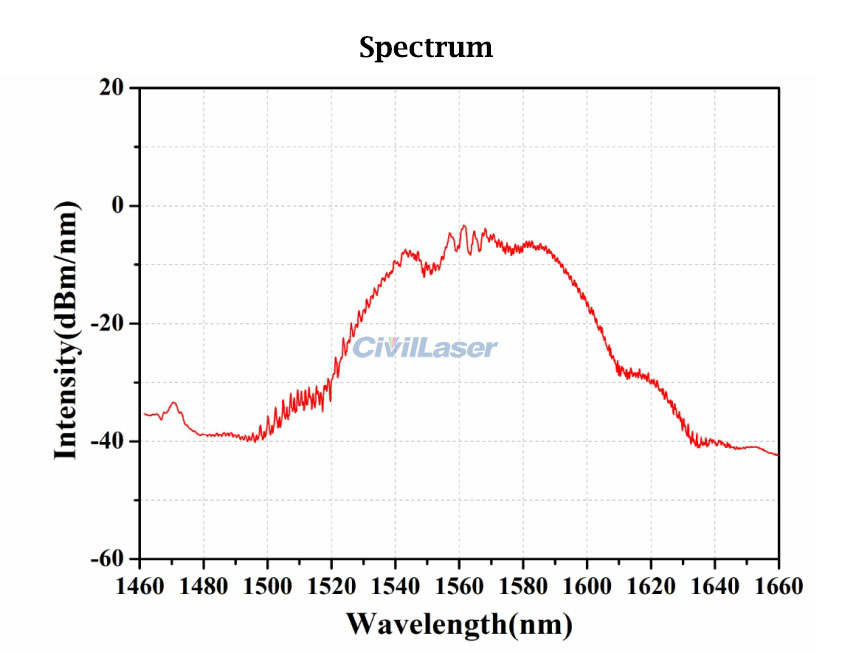

| Center Wavelength |
nm |
1560±10 |
|

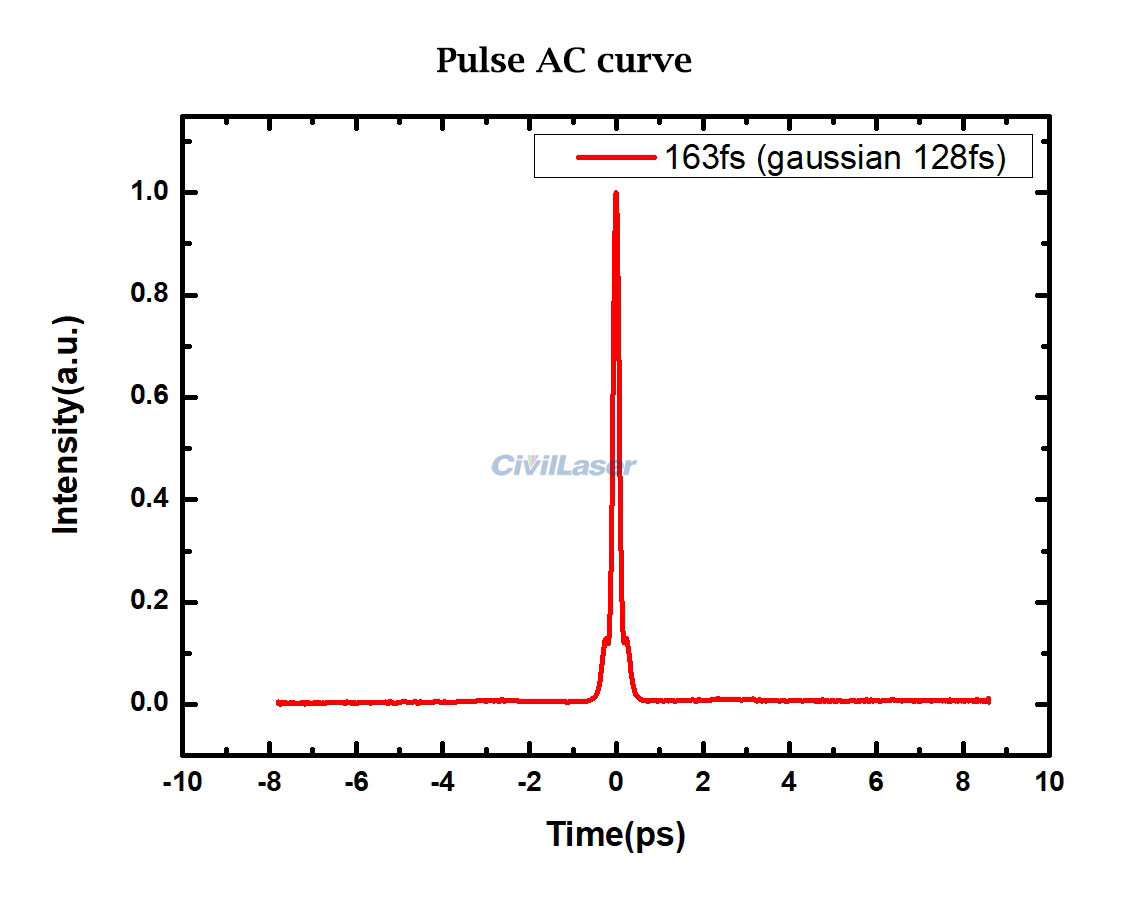

| Pulse Width |
fs |
≤120 |
Customizable |
| Average Power |
W |
1 |
Customizable |
| Power Instability |
|
< 1% |
24h@25°C |
| Repeat Frequency |
MHz |

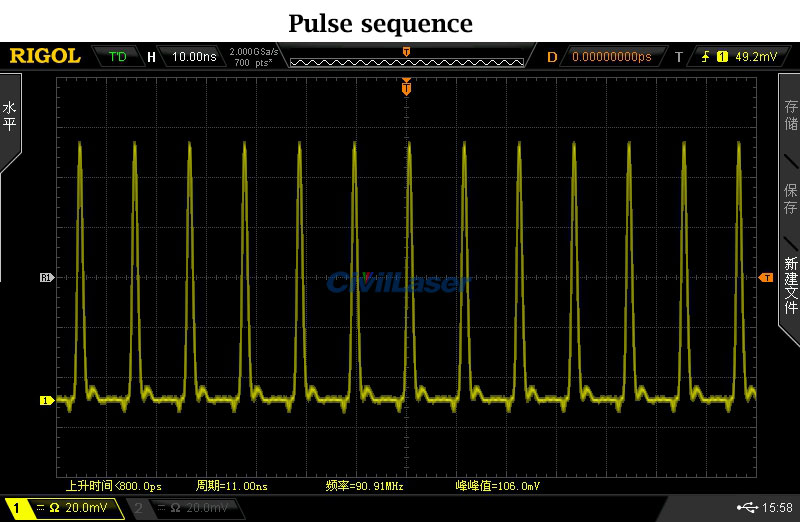

80 |
80/100 Customizable |
| Single Pulse Energy |
nJ |
>10 |
|
| Laser Polarization State |
|
Linear polarization, DOP>20dB |
Vertical polarization |
| Laser وضع الإخراج |
|
Space light |
|
| Beam Quality |
|
M2<1.2 |
TEM00 |
| Beam Diameter |
mm |
≤1.6 |
* 1/e2 Waist Diameter |
| شعاع الاختلاف Angle |
mrad |
<1.5 |
|
| Synchronous Electrical Signal Interface |
|
SMA |
|
| Preheat Time |
min |
<1 |
|
| درجة حرارة التشغيل |
°C |
5 ~ 45 |
|
| Size |
mm |
330(W)×398(D)×112(H) |
|
| مزود الطاقة |
|
AC 110~240VAC |
Power consumption<40W |
| Net Weight |
kg |
≤5 |
|
