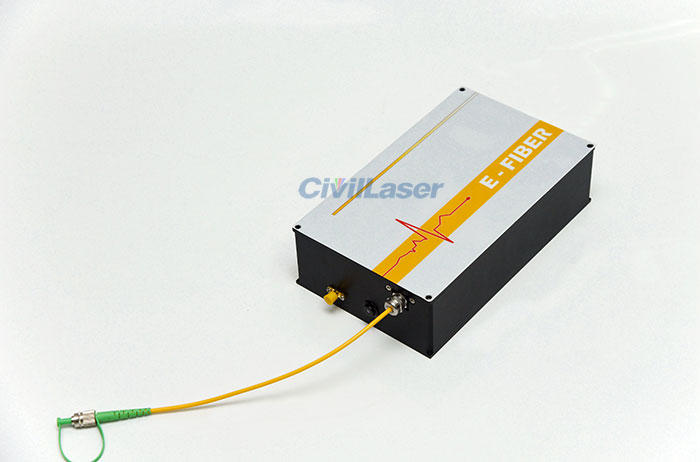

1560nm 1.5μm ليزر الألياف النبضي بيكوسيكوند 1ps Pulse Width Ultra-fast Laser
This product integrates the latest ultrashort pulse laser technology, uses high-performance rare earth fiber as the working medium, combines high-precision dispersion compensation technology and active servo control system to achieve stable output of 1.5μm band picosecond pulse laser. It can be completely self-started and work stably for a long time. It has the characteristics of extremely narrow laser pulse and high pulse peak optical power. This light source can be used للبحث العلمي in the fields of optical frequency comb, supercontinuum, terahertz, etc.
[سمات]
All fiber structure
Narrow pulse width
Fully self-starting
Long service life
[التطبيقات]
قوة عالية laser seed source
Nonlinear optics
Ultrafast research
Optical OCT
[تحديد]
| Parameter |
Unit |
Value |
Remarks |
| Wavelength |
nm |
1560±10 |
|

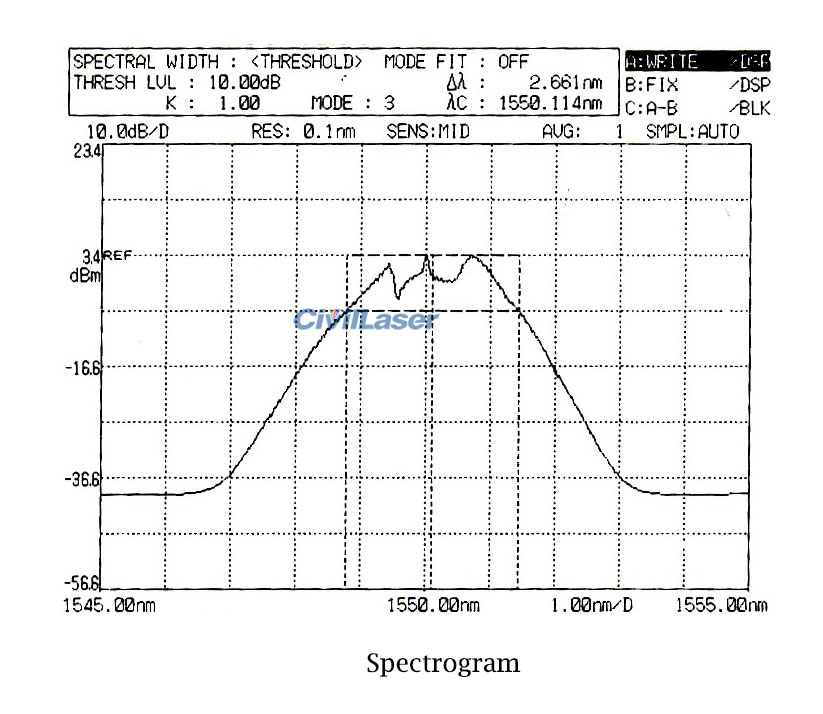

| Spectral Width |
nm |
1nm@3dB |
1~20 Customizable |

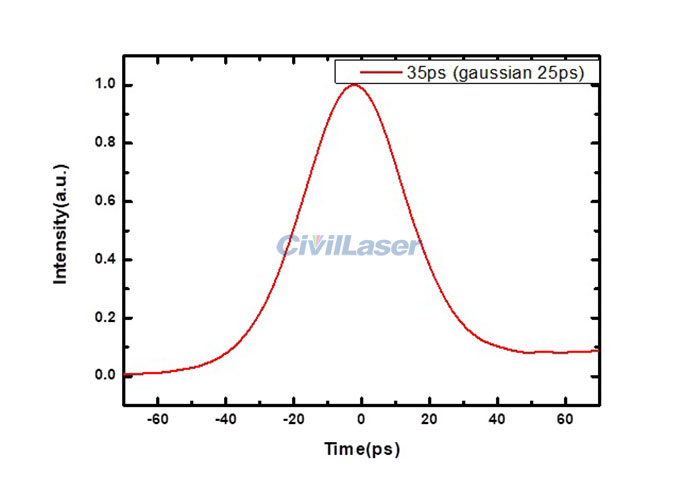

| Pulse Width |
ps |
>1 |
10/50/100/200/500ps customizable |
| Average Power |
mW |
100 |
1~500mW customizable |
| Power Instability |
|
< 1% |
|

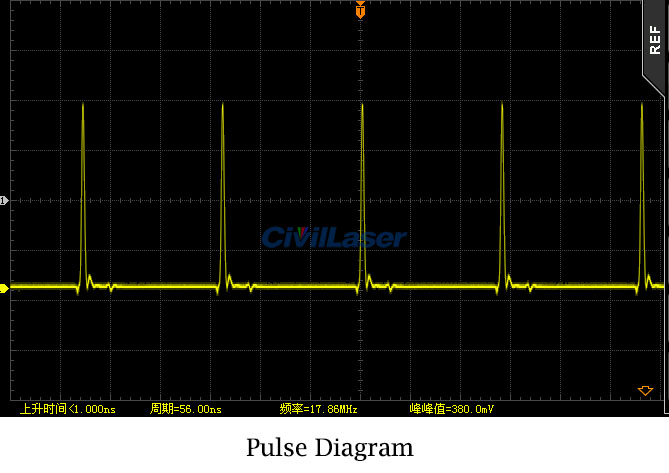

| Repeat Frequency |
MHz |
80 |
15~100MHz customizable |
| Single Pulse Energy |
nJ |
>1 |
|
| Laser Polarization State |
|
Linear polarization |
|
| Output Fiber Type |
|
PM1550 polarization maintaining fiber, FC/APC |
|
| Synchronous Electrical Signal Interface |
|
SMA |
|
| Preheat Time |
min |
<1 |
|
| درجة حرارة التشغيل |
°C |
5 ~ 45 |
|
| Size |
mm |
200(W)×121(D)×55(H) |
|
| مزود الطاقة |
V |
DC 5V / 4A |
|
