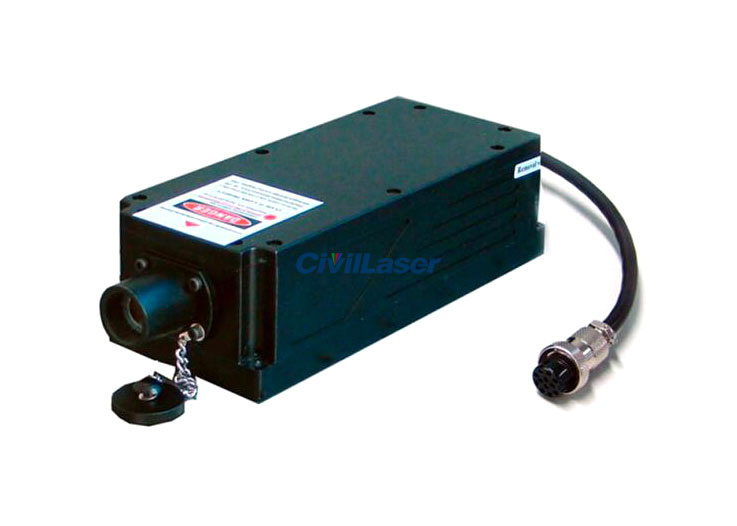

561nm 30mW Yellow Green LD Pumped ليزر الحالة الصلبة 1~400mW Laser Customized
Low noise yellow green laser at 561nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific experiment, optical sensor, measurement, instrument, communication, spectrum analysis, etc.
[تخصيص]

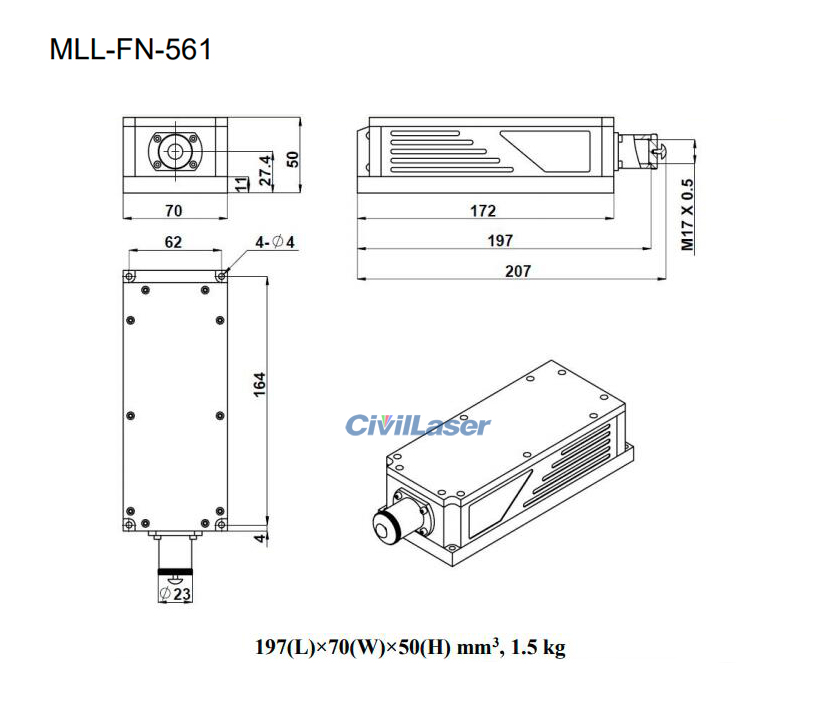

| Model |
MLL-FN-561 |
| Wavelength(nm) |
561±1 |
| وضع التشغيل |
CW |
| انتاج الطاقة (mW) |
30mW (1~400mW يمكن تخصيص) |
| استقرار القوة (rms, over 4 hours) |
<3% |
| Transverse mode |
Near TEM00 |
| M² factor |
<1.2 |
| Modulation |
TTL / 1KHz |
| Noise of amplitude (rms, 20Hz~20MHz) |
<1% |
| Beam diameter at the aperture (1/e², mm) |
~2.0 |
| Beam divergence, full angle (mrad) |
<1.5 |
| Polarization ratio |
>100:1 Vertical±5 degree (Horizontal Optional) |
| وقت الإحماء (minutes) |
<10 |
| ثبات التأشير after warm-up (mrad) |
<0.05 |
| Beam height from base plate (mm) |
Near 27.4 |
| Operating temperature (℃) |
10~35 |

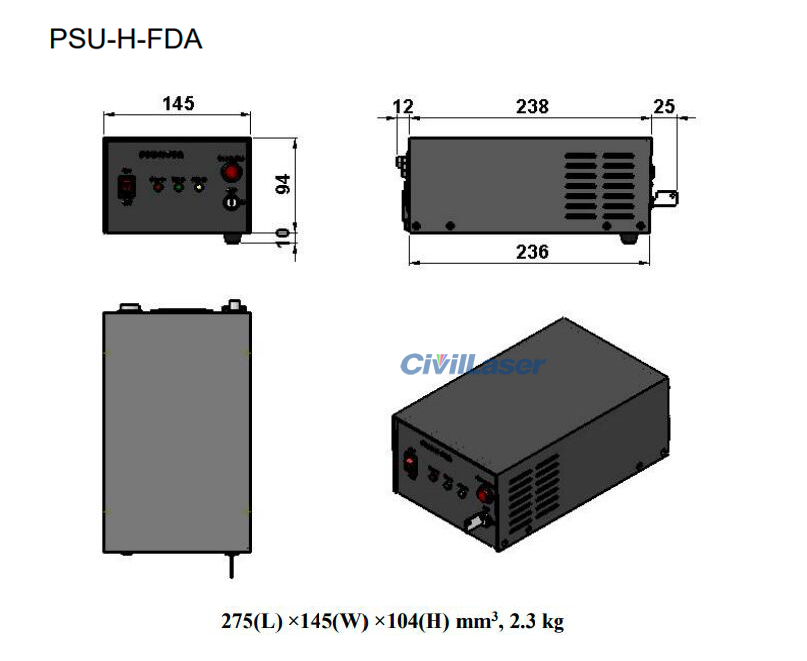

| Power supply (90-264VAC) |
PSU-H-FDA |
| Expected lifetime (hours) |
10000 |
| ضمان |
1 year |
| Note |
The laser head needs to be used on a heat sink with good heat dissipation. |
