Powell lens Green laser line 520nm 50mW 85mW uniform line laser positioning
تحديد:
Name: 520nm وحدة الليزر الخضراء Line adjustable output power and line width
الطول الموجي الناتج: 520nm
انتاج الطاقة: 50mW / 85mW ((يختار)
شكل الليزر: Line
نوع الليزر: Visible laser, Green laser
اللون الخارجي: Black

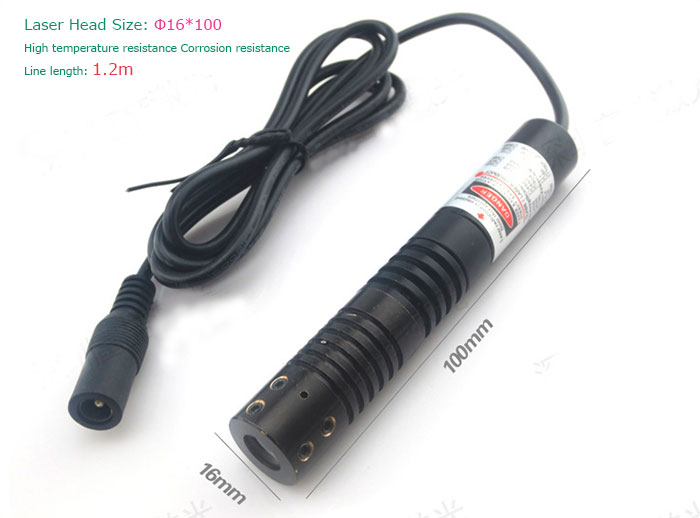

Size: φ16*100mm
Current: ≤400mA
جهد التشغيل: DC 1-3V

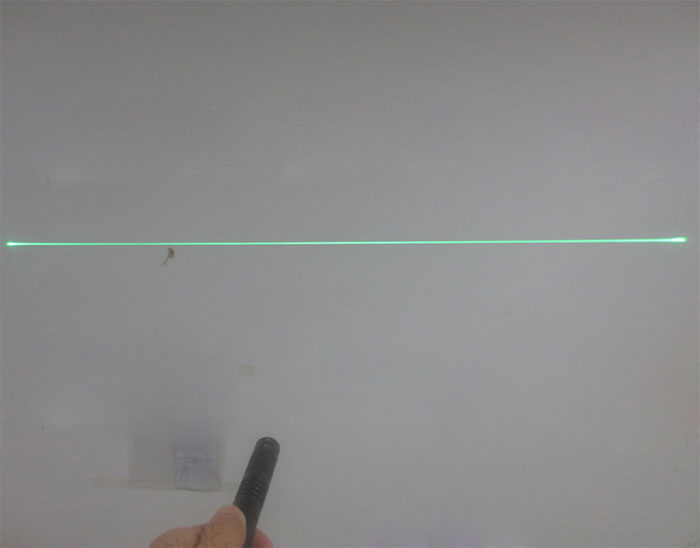

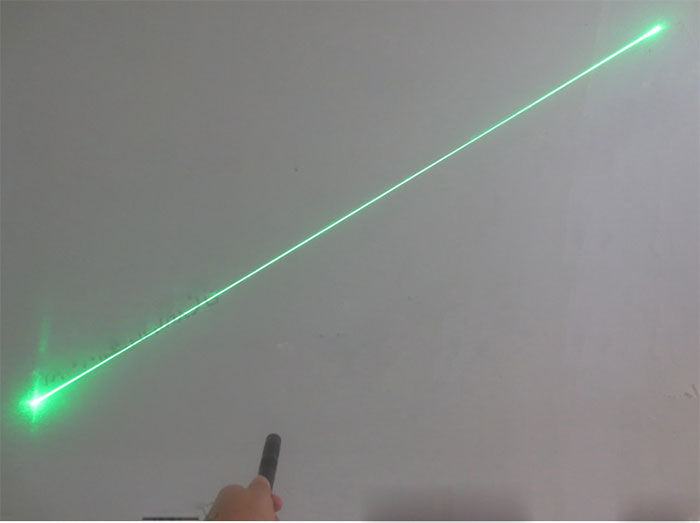

Spot pattern: uniform line

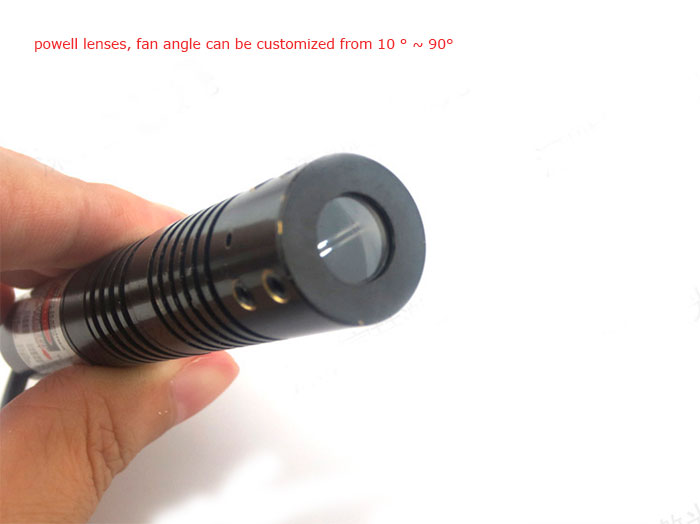

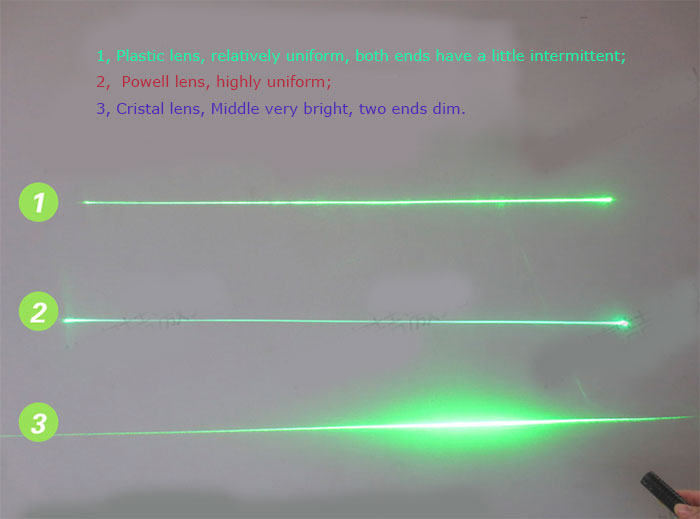

Optical lens: Powell lens
Fan angle: 10° ~90°(يمكن تخصيص)

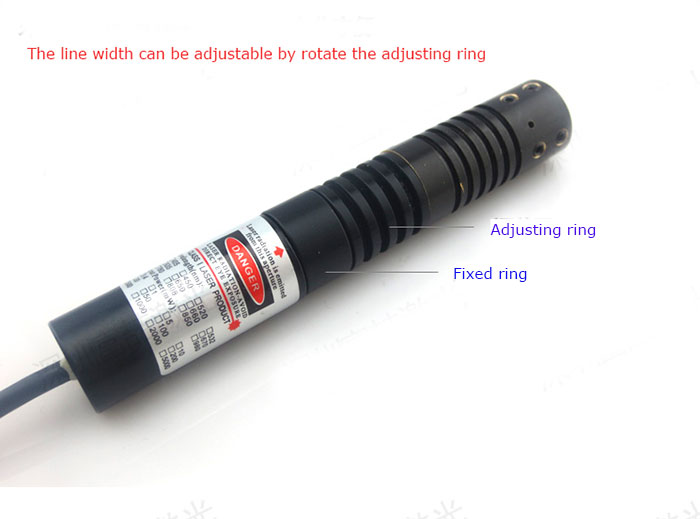

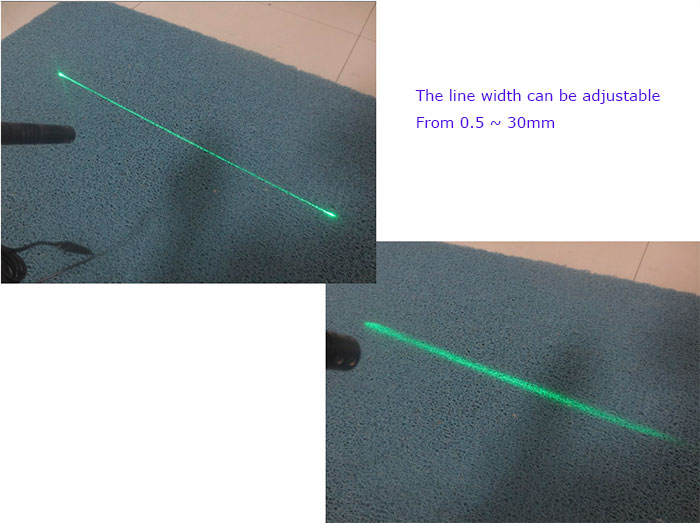

Line width: 0.5mm ~ 30mm (adjustable)
درجة حرارة التشغيل: -10--50℃
درجة حرارة التخزين: -40℃~80℃

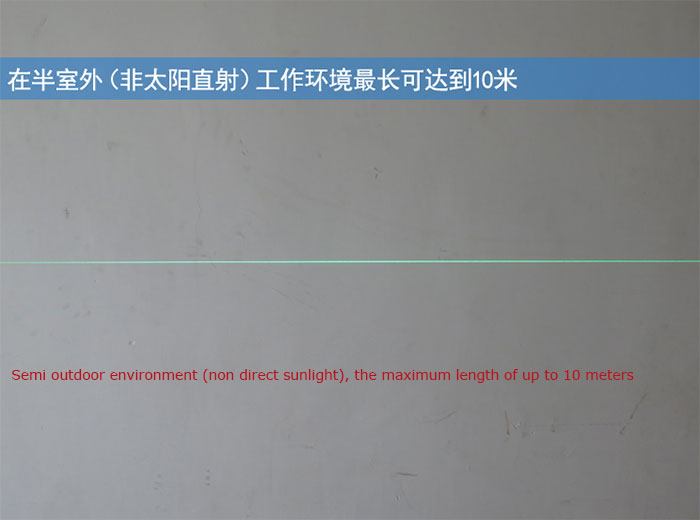

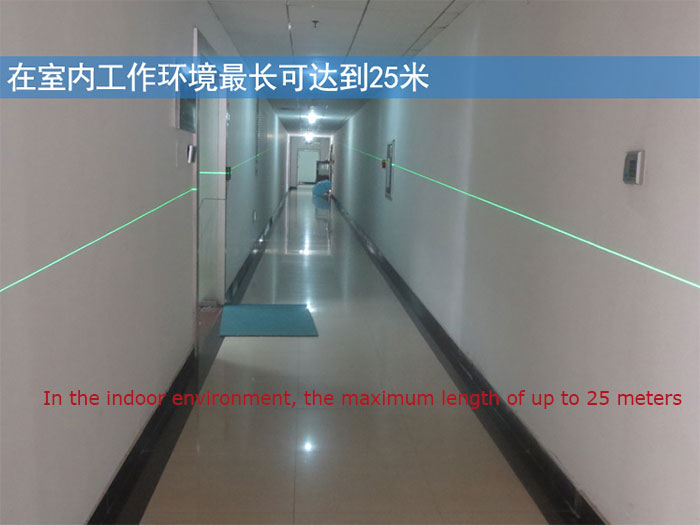

Line Length: 1.2m (يمكن تخصيص)
ضمان: 12 Months Factory warranty
Structure سمات: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway
الشحنة تحتوي:
1* وحدة الليزر الخضراء;
1* Laser stand;

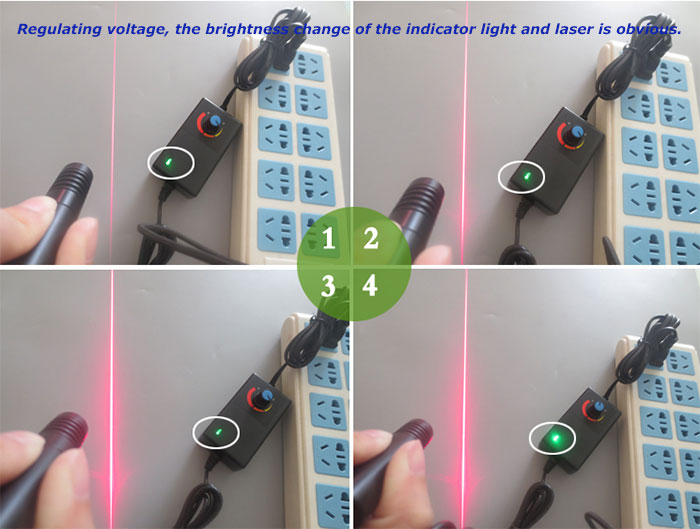

1* Adjustable Power supply;
This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7, Tail power line using high temperature line, good toughness and corrosion resistance.

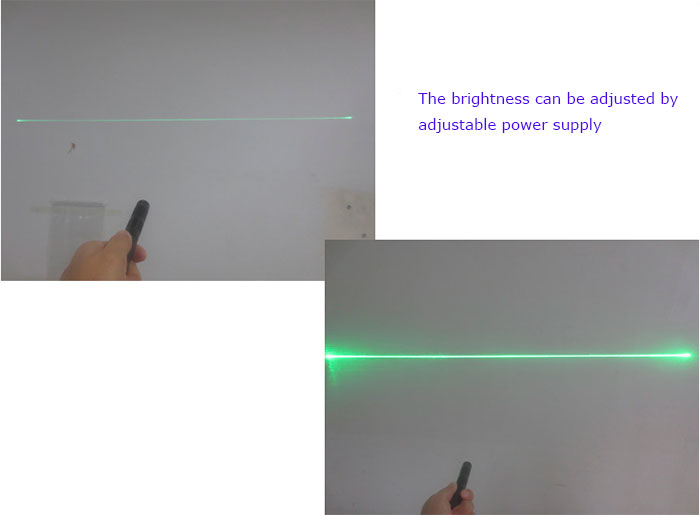

وحدة ليزر الخط الأخضر and the output power is adjustalbe
