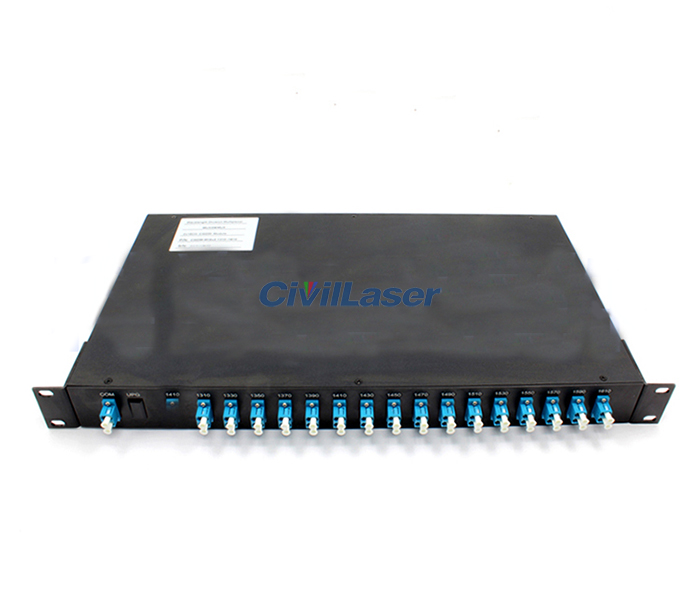

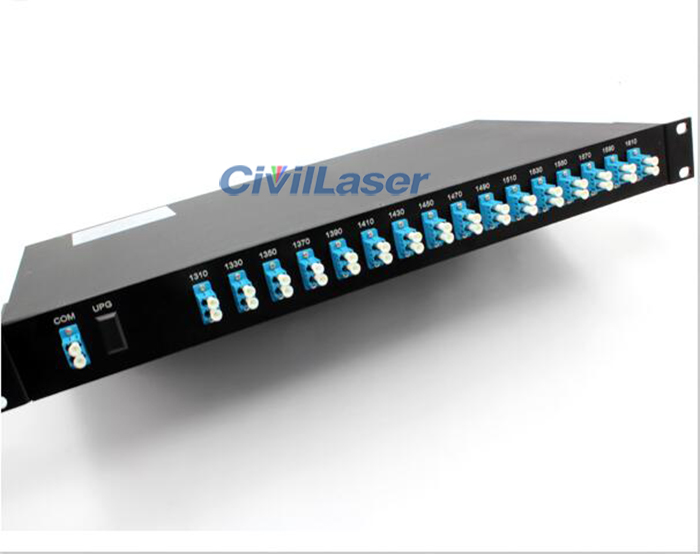

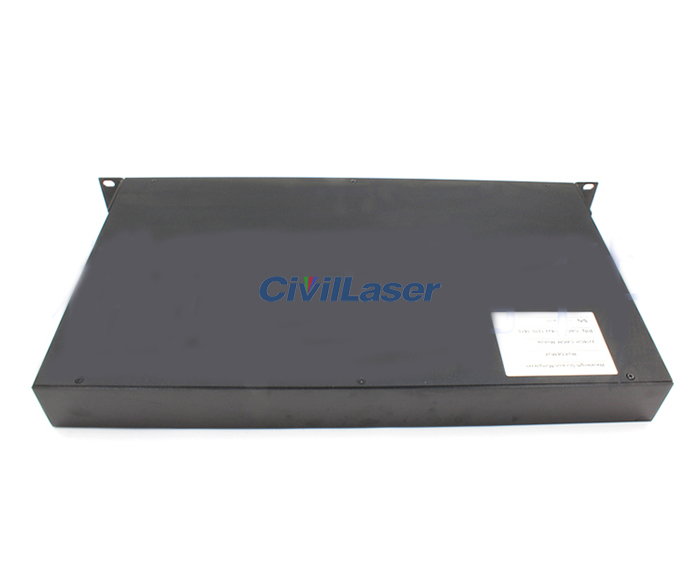

16 Channel Chassis Type معدد تقسيم الطول الموجي Mux and Demux
[سمات]
1. Wide passband
2. Low insertion loss
3. High channel isolation
4. High stability and reliability
5. Epoxy-free optical path
[التطبيقات]
1. Optical fiber communication systems
2. Optical devices
3. Optical amplifiers
4. Fiber lasers
5. Wavelength division multiplexing systems
6. System monitors
تحديد
| Parameter |
تحديد |
Unit |
| Public end |
Customized: 1,260~1,610 |
nm |
| 16Channel Transmission center wavelength |
Customized: 1,270~1,610 |
nm |
| 16Channel Insertion Loss |
<4.5(default) /<3.0 |
dB |
| Isolation |
Non adjacent channel |
≥30 |
dB |
| Adjacent channel |
≥40 |
dB |
| Return Loss |
＞50 |
dB |
| Temperature Sensitivity |
＜0.005 |
dB/ ℃ |
| Polarization Dependent Loss |
＜0.10 |
dB |
| Polarization Mode Dispersion |
＜0.10 |
Ps/Km |
| Directionality |
≥50 |
dB |
| Power Handling |
300 |
mW |
| Working Temperature |
-20~+70 |
°C |
| درجة حرارة التخزين |
-40~+85 |
°C |
| Fiber Type |
SMF-28e |
| Fiber Adapter Type |
ST(Default) /SC/LC/FC |
