532nm 5W وحدة الليزر الخضراء/Automatic refrigeration/قوة عالية ليزر DPSS with power supply

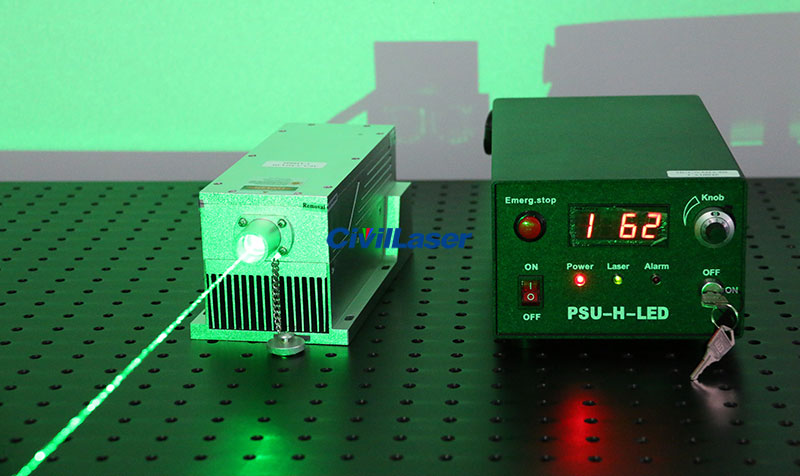

MGL-N-532Anm-5W-A green laser show:

The imported laser diode pump source, MGL-N-532Anm-5W-A DPSS green laser are made of high quality high quality nonlinear crystal and collimating lens, with temperature control of high performance driving power, the active temperature control, with high efficiency, good stability, good beam quality, low noise, strong anti-jamming, good consistency, compact structure, miniaturization, long life and so on.

Products are widely used in medicine, laser show, isotope separation, ultra-high density optical storage, precision materials processing, lithography, spectrum analysis etc..



Model: MGL-N-532Anm-5W-A (Good Beam)
Wavelength: 532±1nm
وضع التشغيل: CW & modulation
انتاج الطاقة: 5W
الوضع المكاني: TEM00

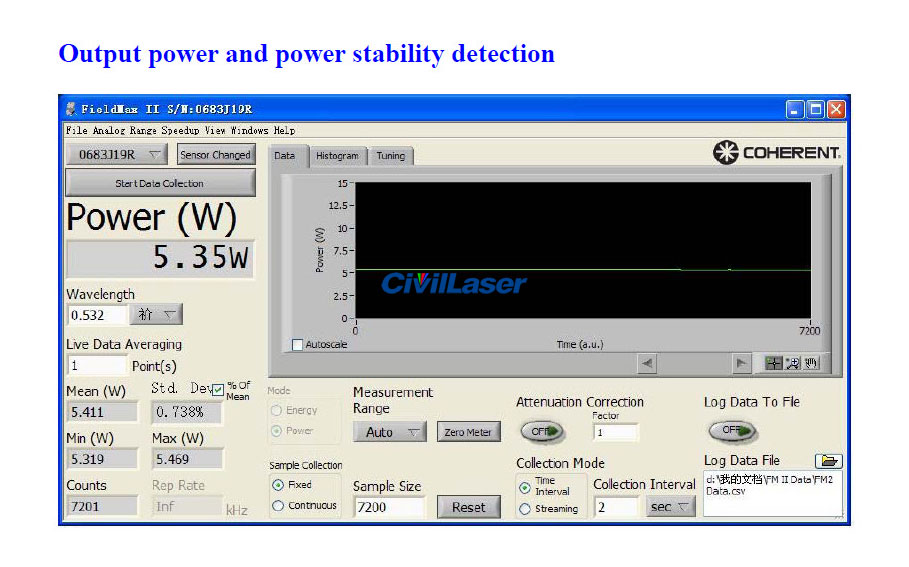

استقرار الطاقة(rms, over 4 hours): <1%

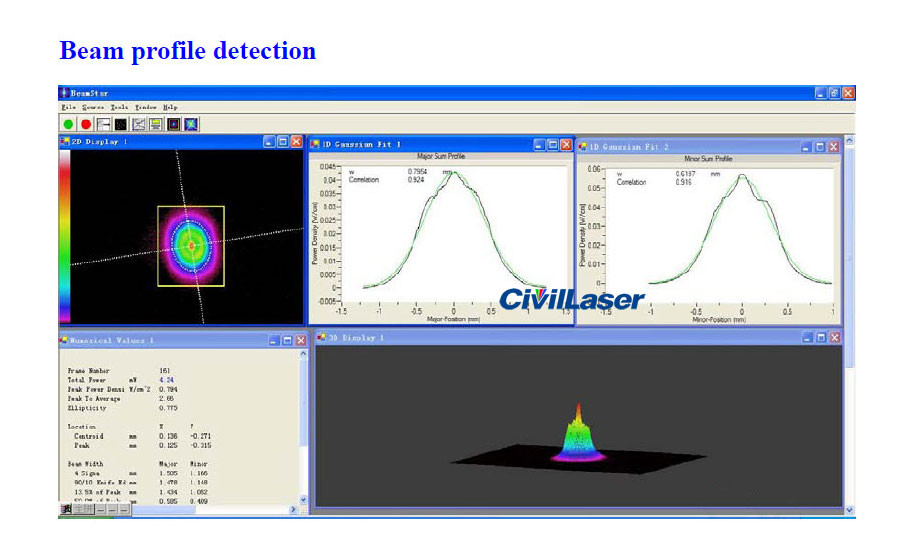

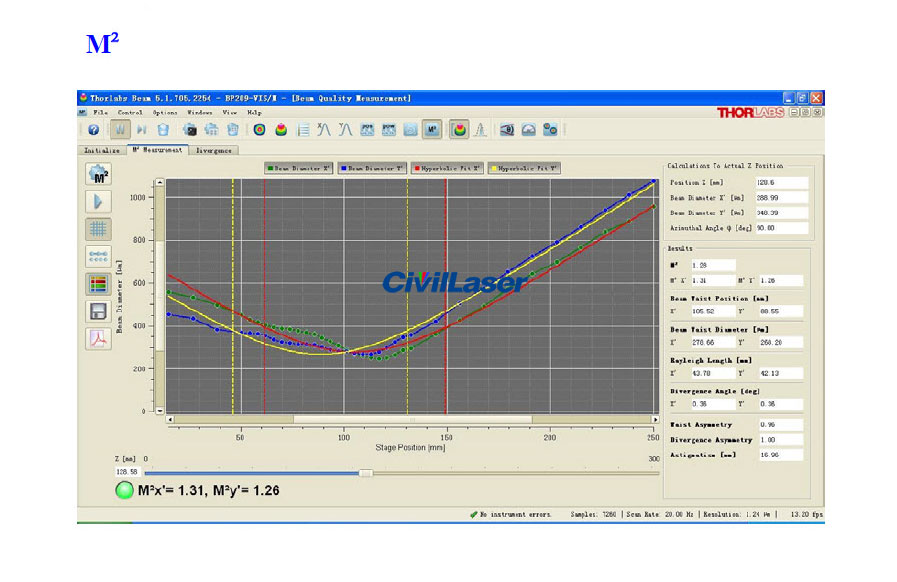

Beam Quality(M2): < 1.3
Beam Diameter at the Aperture (1/e2,mm): Near 1.5
شعاع الاختلاف, Full Angle (mrad): <1.5
Warm‐up Time (minutes): <10
Polarization Ratio: >100:1
Beam Height From Base Plate (mm): Near 68.5
درجة حرارة التشغيل (℃): 10~35

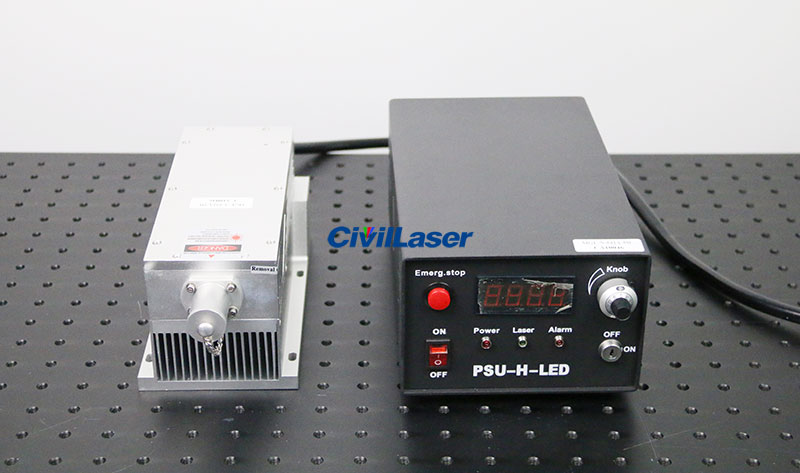

مزود الطاقة (90‐264VAC): PSU‐H‐LED (Adjustable type)
Modulation: TTL/Analog with 1K~10KHz
Expected Lifetime (hours): 10000

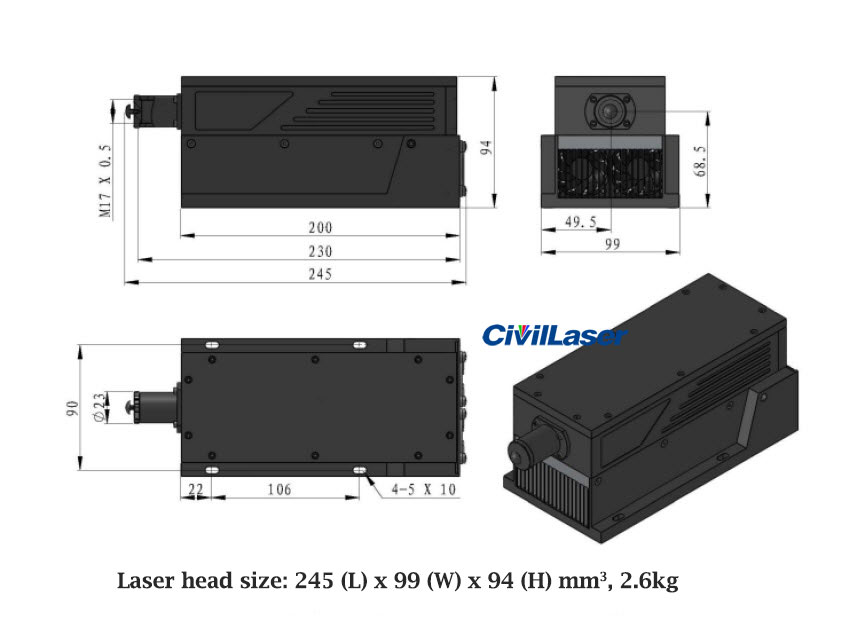

Size of رأس الليزر:  245×99×94mm3 (LxWxH)
Size of مزود الطاقة: 240×145×96mm3 (LxWxH)
ضمان Period: 1 year
