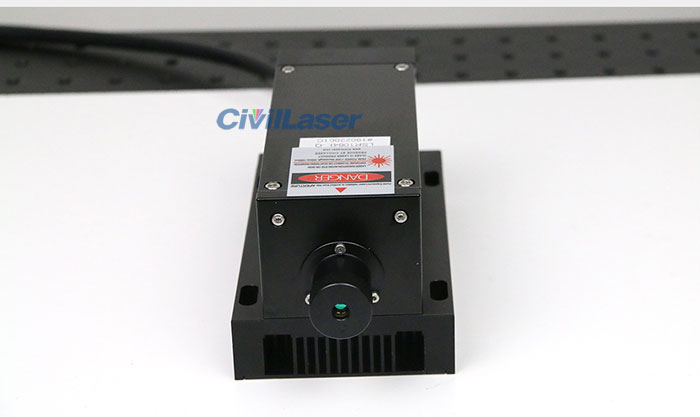

1064nm IR الليزر النبضي Q-Switched السلبي ليزر الحالة الصلبة مصدر طاقة قابل للتعديل
[سمات]
1. Passively Q-switched
2. Adjustable repetition frequency
[تخصيص]
| Model |
Model#01-1064HQ |
Model#02-1064HXQ |
Model#03-1064HYQ |
| Wavelength |
1064nm |
1064nm |
1064nm |
| الوضع المكاني |
TEM00 |
TEM00 |
TEM00 |
| Average انتاج الطاقة |
default near 200mw |
default near 500mW |
default near 1000mW |
| Single Pulse Energy |
default near 20uJ (10~50uJ customizable) |
default near 50uJ (1~200uJ customizable) |
default near 80uJ (1~100uJ customizable) |
| Pulse Width |
default near 15ns (5~50ns customizable) |
default near 20ns (5~50ns customizable) |
default near 20ns (10~30ns customizable) |
| Peak Power |
500W~10KW |
1KW~10KW |
500W~5KW |
| Repeat Rate |
default near 10KHz (1Hz~50KHz customizable ) |
default near 10KHz (10Hz~50KHz customizable) |
default near 12KHz (10Hz~30KHz customizable) |
| Modulation Signal |
0~50KHz |
0~50KHz |
0Hz~30KHz |
| Beam Spot Shape |
Circular, aspect ratio<1.1:1 |
Circular, aspect ratio<1.1:1 |
Circular, aspect ratio<1.1:1 |
| مؤشر الاستقرار |
<0.05 mrad |
<0.05 mrad |
<0.05 mrad |
| Beam Diameter（1/e2） |
<1.5 mm |
<1.5 mm |
<1.5 mm |
| شعاع الاختلاف |
<1.5 mrad |
<1.5 mrad |
<1.5 mrad |
| استقرار الطاقة |
<±3% per 2 hrs |
<±3% per 2 hrs |
<±3% per 2 hrs |
| Beam Height |
29mm |
39mm |
29mm |
| استقرار درجة الحرارة |
TEC |
TEC |
TEC |
| وقت الإحماء |
<5 minutes |
<5 minutes |
<5 minutes |
| Beam Quality（M2） |
<2 |
<2 |
<2 |
| Optimum درجة حرارة التشغيل |
20~30℃ |
20~30℃ |
20~30℃ |
| درجة حرارة التخزين |
10~50℃ |
10~50℃ |
10~50℃ |
| MTTF |
10,000 hrs |
10,000 hrs |
10,000 hrs |

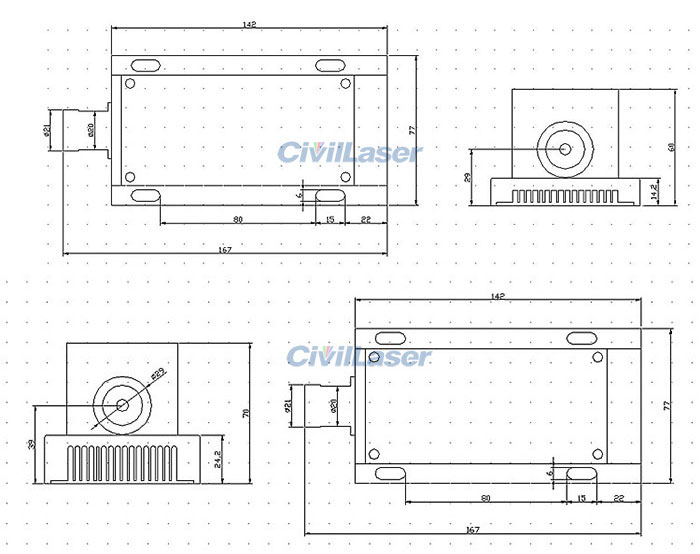

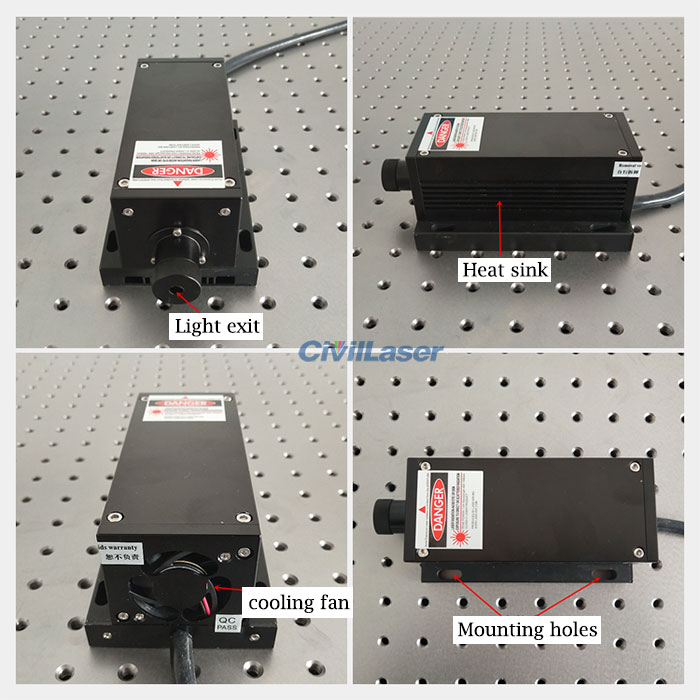

| رأس الليزر Size |
155(L)x77(W)x60(H)mm3 |
167(L)x77(W)x70(H)mm3 |
155(L)x77(W)x60(H)mm3 |

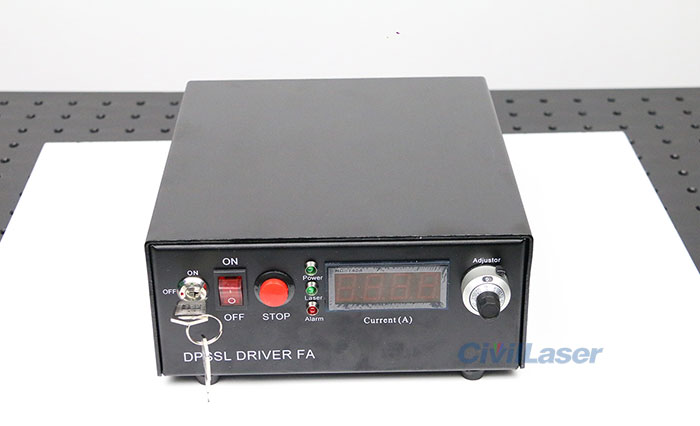

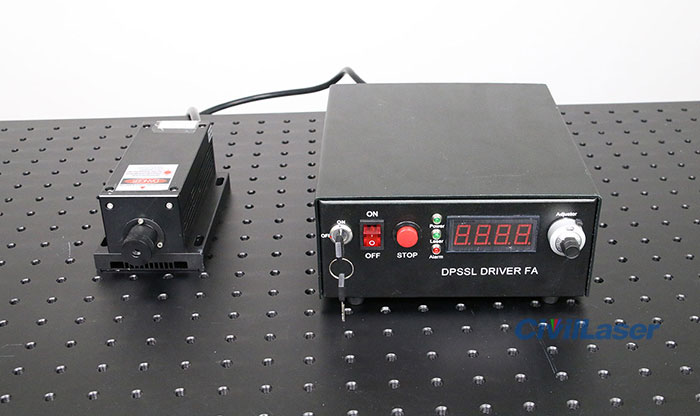

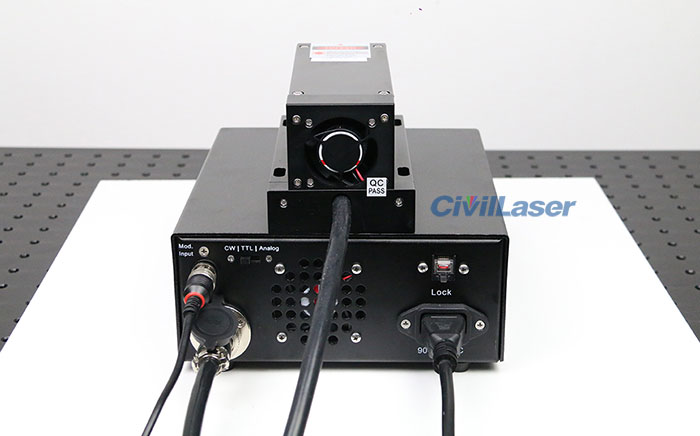

| مزود الطاقة |
178(W)x197(D)x84(H) mm3 |
178(W)x197(D)x84(H) mm3 |
178(W)x197(D)x84(H) mm3 |
| Note |
The average power of this model Q-switched laser is about 200mw. The two parameters of single pulse energy and repetition frequency affect each other. |
The average power of this model Q-switched laser is about 500mw. The two parameters of single pulse energy and repetition frequency affect each other. |
The average power of this model Q-switched laser is about 1000mw. The two parameters of single pulse energy and repetition frequency affect each other. |
[Main parameters explanation]
(1) Repeat rate
The max repeat rate is fixed.
1 ~ max repeat rate can be adjusted by Exteranl input signal.
(2) Single pluse energy
It يمكن تخصيص according to your needs.
It is a fixed value after production is completed.
(3) Pulse width
It يمكن تخصيص according to your needs.
It is a fixed value after production is completed.
(4)Average output power
Average output power = [Repeat rate]*[Single pulse energy]
e.g.
Repeat Rate: 1~10KHz
Single Pulse Energy: near 20uJ
Average output power = [Repeat rate]*[Single pulse energy] = 10*1000*20 = 200000uJ (200mW)
(5)Peak Power
Peak Power = [Single pulse energy]/[Pulse Width]
e.g.
Pulse Width: near 15ns
Single Pulse Energy: near 20uJ
Peak Power = [Single pulse energy]/[Pulse Width] = 20uJ/15ns = 20*10^(-6) / 15 * 10^(-9) = 20 / (15*0.001) = 1333W
